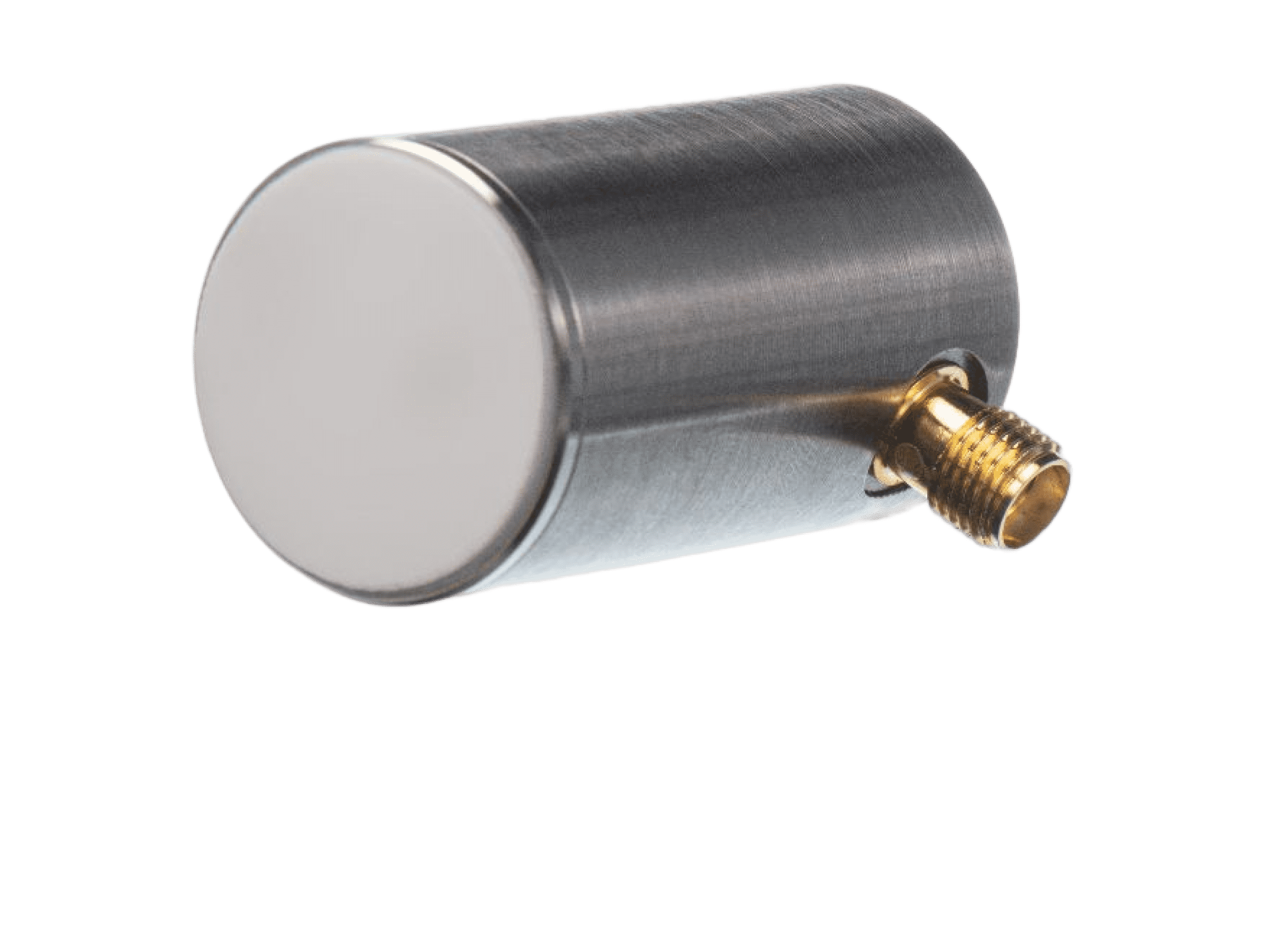

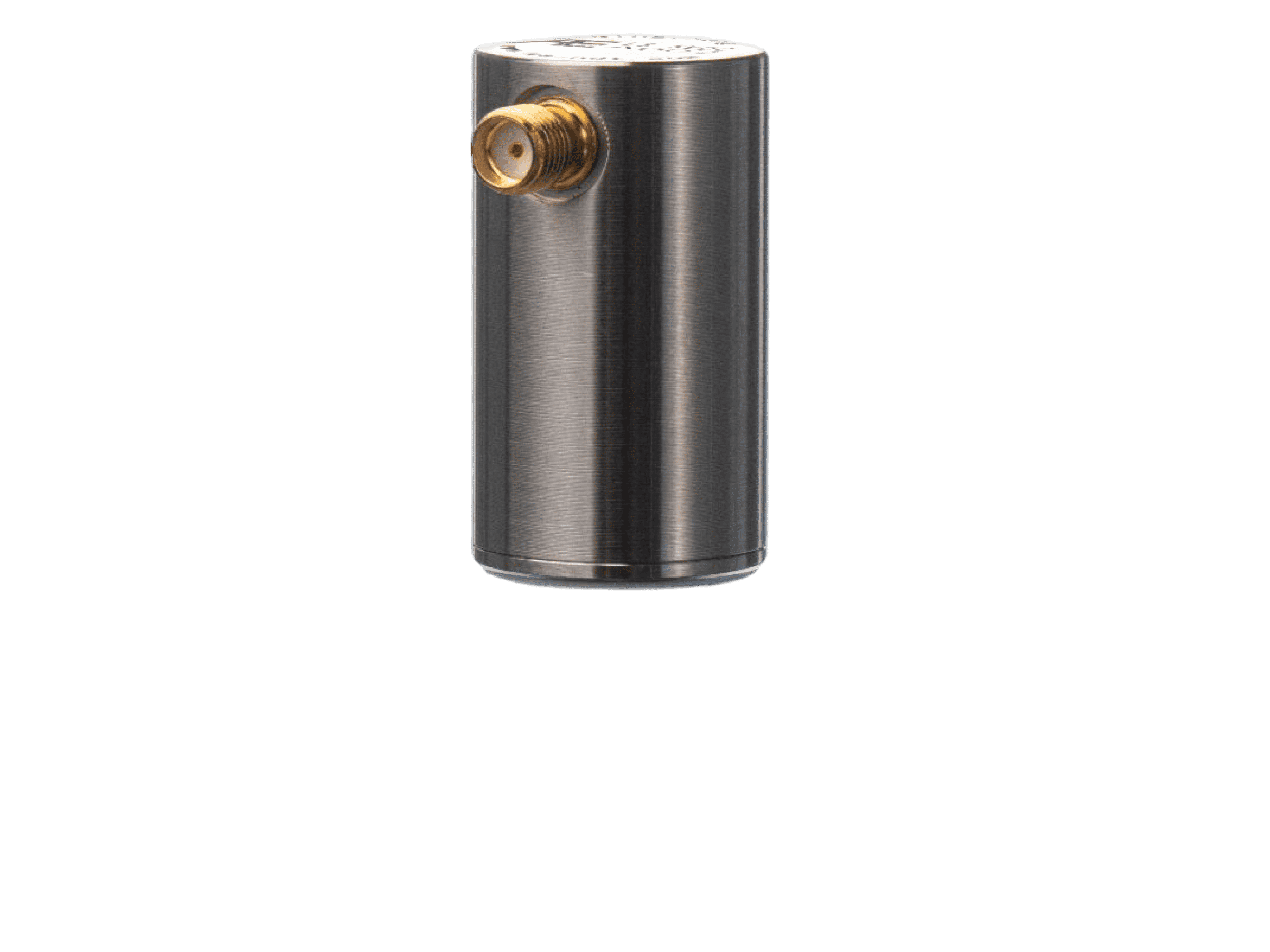

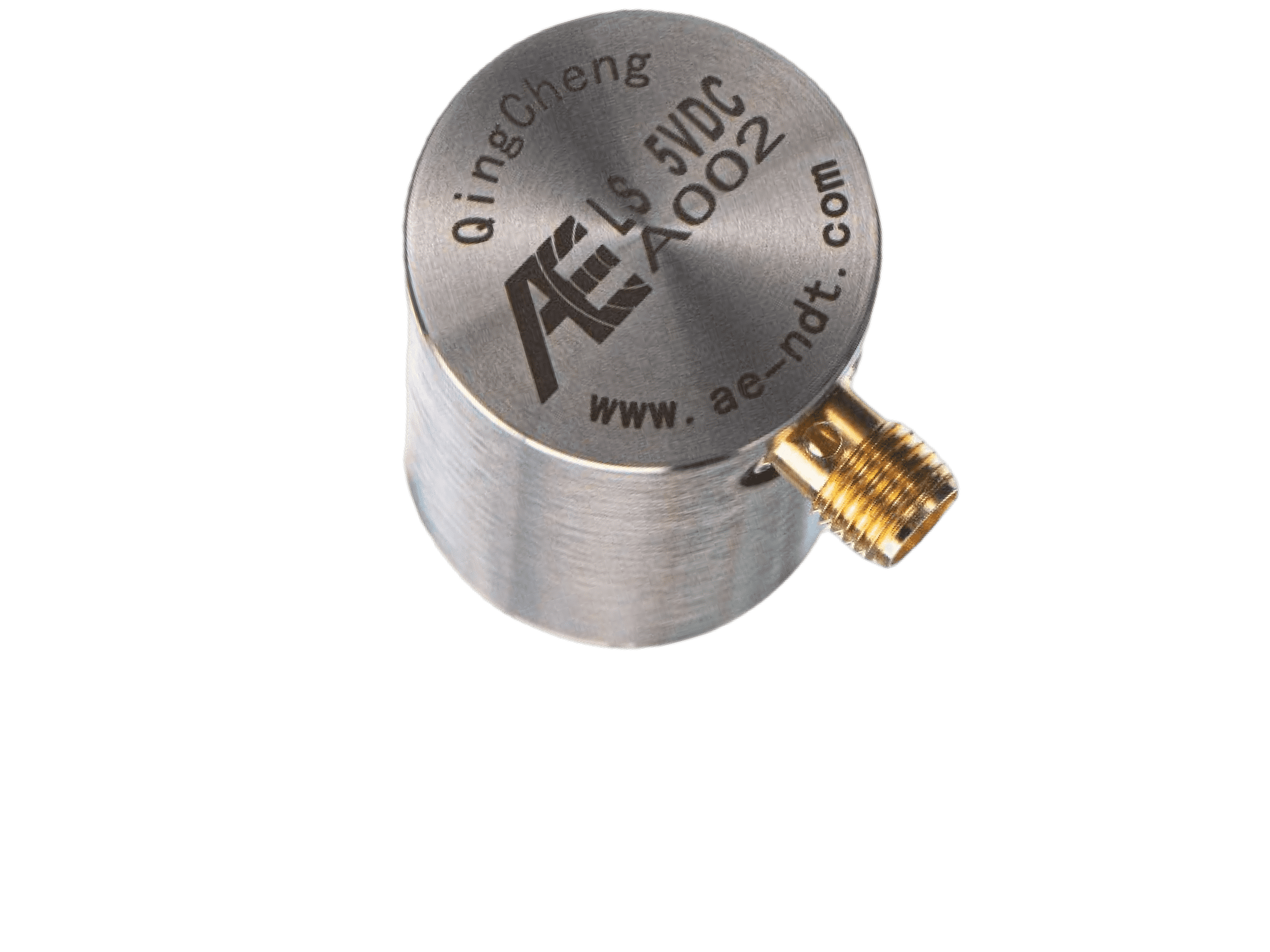

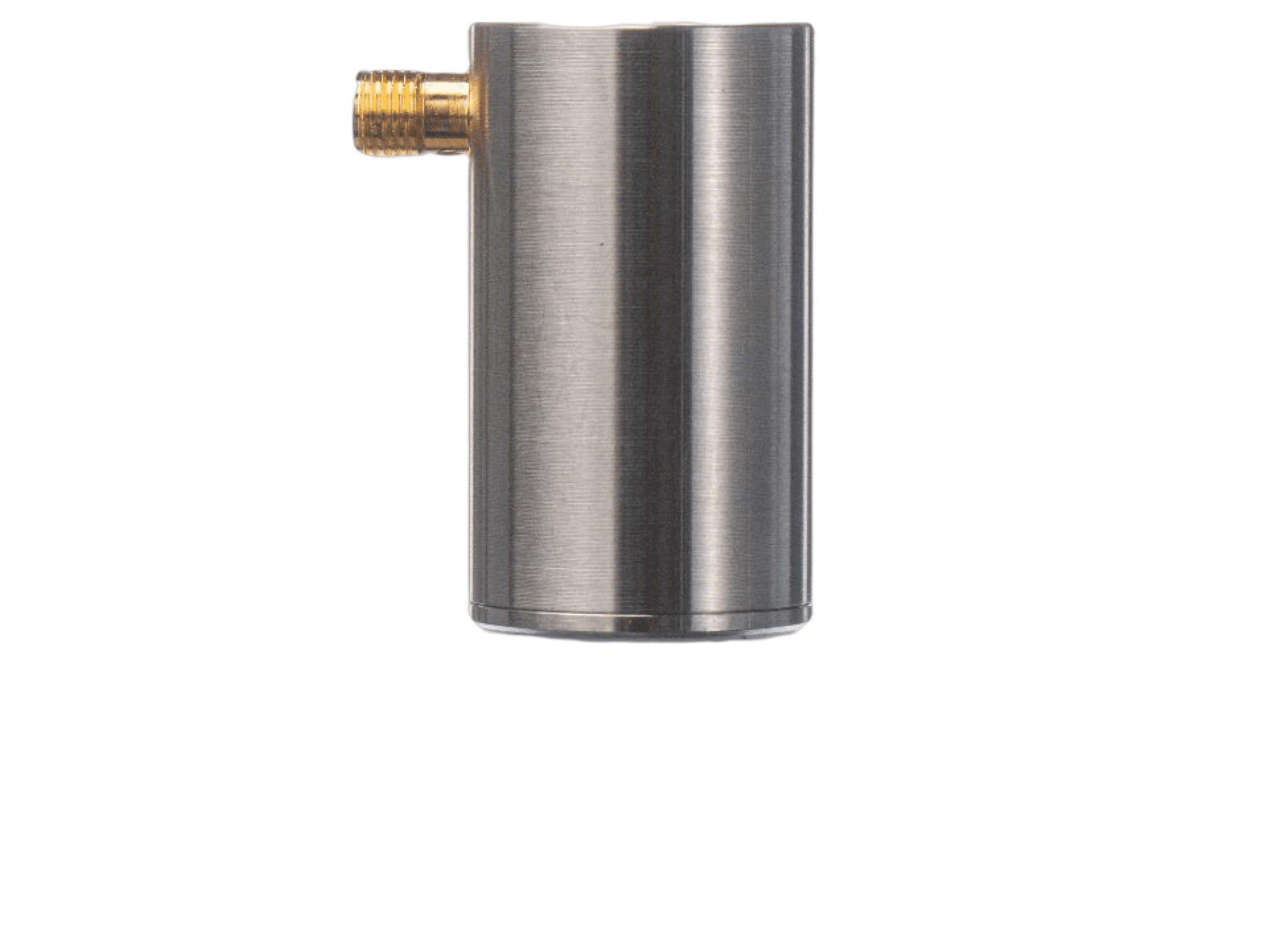

Intrinsically Safe AE Sensor LS 5VDC_15-70kHz

Model:

LS 5VDC(type A)sensor

Description:

The LS 5VDC is an intrinsically safe explosion-proof AE sensor with build-in 26dB5V preamplifier. It's well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety and for structures health monitoring.

Features:

Intrinsically safe explosion-proof sensor with build-in 26dB5V preamplifier.

ENQUIRY NOWCONTACT:+86-20-32290092

Applications

The LS 5VDC is well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety and for structures health monitoring such as pipelines, vessels, bridges etc.



Technical Specs

Resonant Freq.   Ref V/(m/s)

35kHz

Frequency Range

15kHz-70kHz

Sensitivity Peak   Ref V/(m/s)

>65dB

Integral preamplifier

26dB 5V

Preamp. Impedance

50Ω

Working Temp.

-20 to 50

SizeDxH

22×42.6mm

Weight

54 g

Case Material

SUS-304

Face Material

Ceramic

Protecting Grade

IP62

Connector

SMA

Connector Location

Side

Accessories

Signal cable model

RG178/RG316

Hold-down

M36





Further Information




Intrinsically safe explosion-proof sensor with build-in 26dB5V preamplifier.
