G150 Resonant AE Sensor_60-400kHZ
Model：
G150 sensor
Description：
The G150 is a passive piezoelectric AE sensor with narrowband and high sensitivity. Stainless steel material makes it reliable and endurable. This sensor is suitable for the crack or fault diagnosis of metal, and also for structural health monitoring of large structures like storage tanks, pipelines etc.
Features：
Stainless steel case and ceramic interface, M5 connector. Rugged design, stable performance, good compatibility.
Applications
G150 is a passive piezoelectric acoustic emission sensor. This sensor is suitable for the crack or fault diagnosis of metal,and also for structural health monitoring of large structures like storage tanks, pipelines etc. It could be easily mounted by a magnetic hold-down.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 150kHz |
| Frequency Range | 60kHz-400kHz |

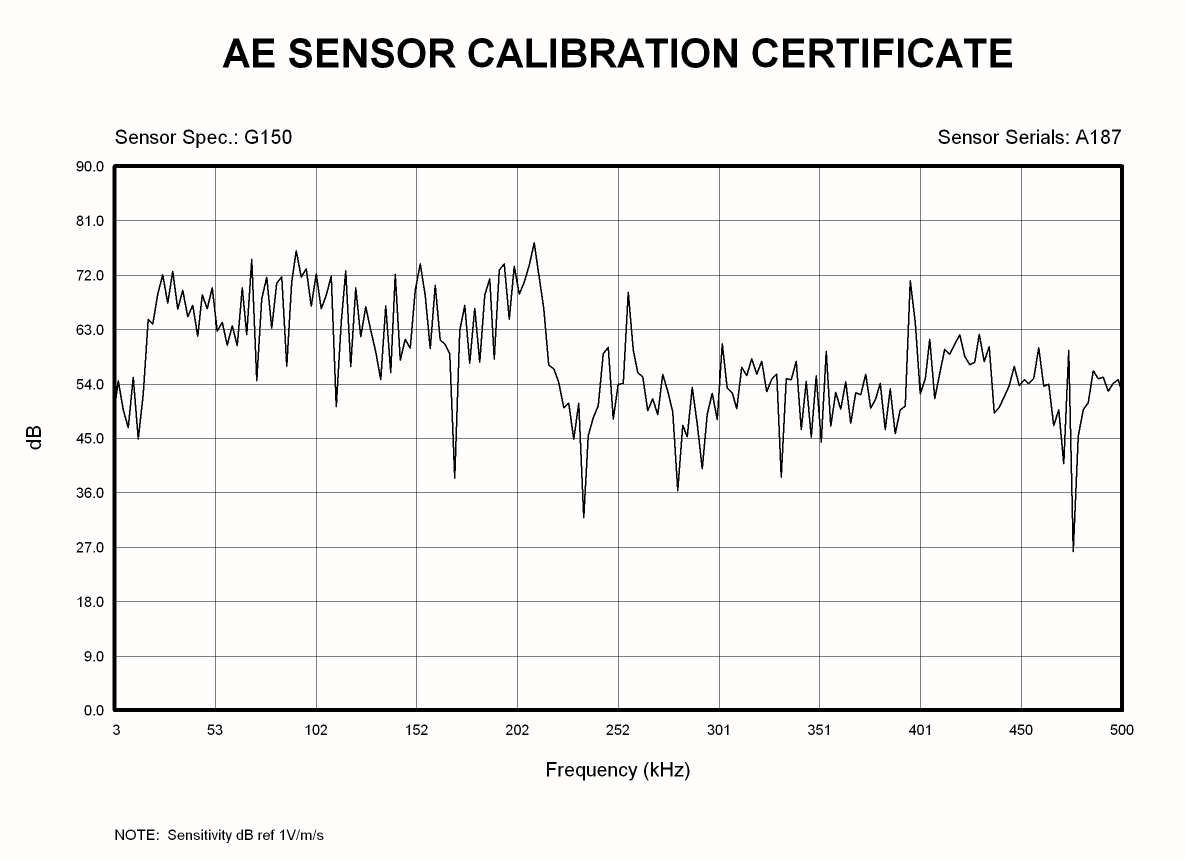

| Sensitivity Peak Ref V/(m/s) | >69dB |
| Working Temp. | -20 to 120℃ |
| Size（DxWxH） | 19×15mm |
| Weight | 23g |
| Case Material | Stainless steel/copper/aluminum |
| Face Material | Ceramic |
| Protecting Grade | IP62 |
| Connector | M5 |
| Connector Location | Side |
| Accessories | |
| Signal cable model | RG178/RG316 |
| Hold-down | M20 |
| Preamplifier | PAS3/PAV |
Further Information
Stainless steel case and ceramic interface, M5 connector. Rugged design, stable performance, good compatibility.
