W500/3 Miniature High Temperature AE Sensor | 177°C
Model：
W500/3 sensor
Description：
W500/3 is a miniature medium and high temperature acoustic emission sensor with a resonant frequency of 260 kHz and a frequency range of 40KHz~600 kHz. It is suitable for acoustic emission detection and monitoring of cracks and damages in pressure vessels, storage tanks, pipelines, composite materials and metal structures.
Features：
The working temperature can reach 177 ℃, the size is small, and the broadband frequency is 40KHz-600KHz

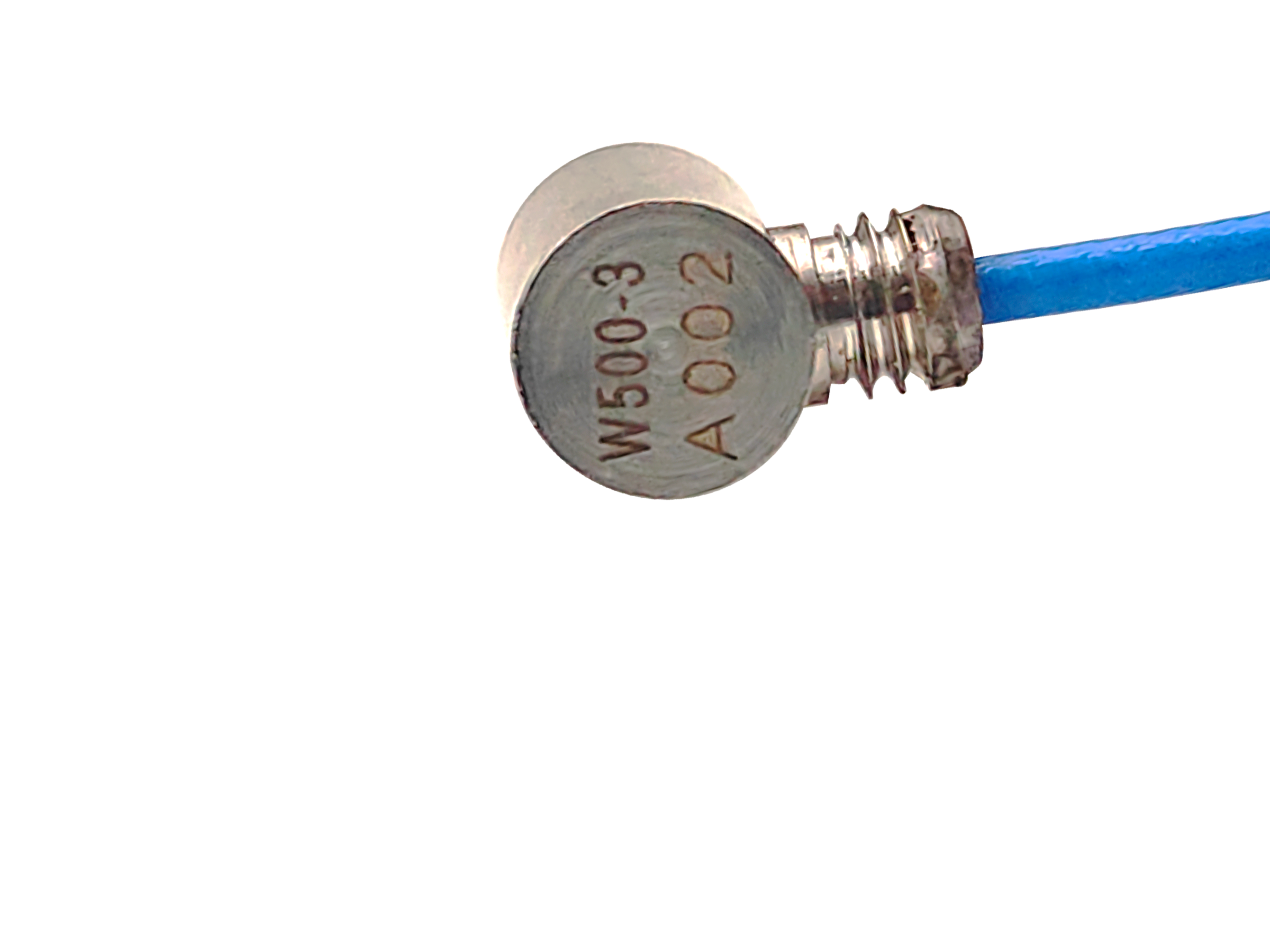

W500/3 Miniature High Temperature acoustic emission Sensor
Applications
W500/3 is a miniature medium and high temperature acoustic emission sensor with a resonant frequency of 260 KHz and a frequency range of 40KHz~600 KHz. It is suitable for acoustic emission detection and monitoring of cracks and damages in pressure vessels, storage tanks, pipelines, composite materials and metal structures.
| Technical Specs | |
| Resonant Freq. Ref V/(m/s) | 260kHz |
| Frequency Range | 40kHz-600kHz |
| Sensitivity Peak Ref V/(m/s) | >55dB |
| Working Temp. | -60 to 177℃ |

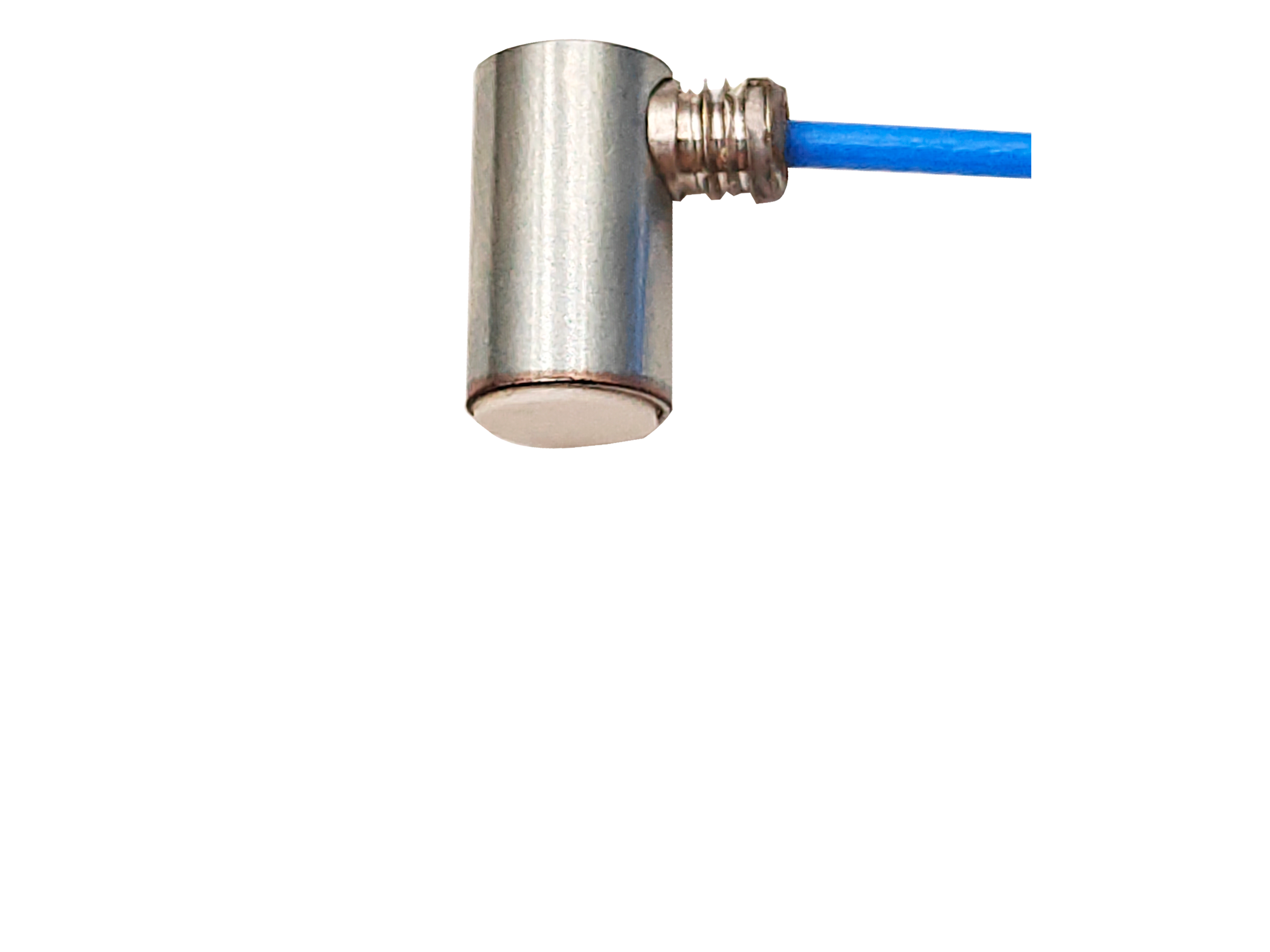

| Size（DxH） | Φ7.8x14 mm |
| Weight | 24 g |
| Case Material | SUS-304 |

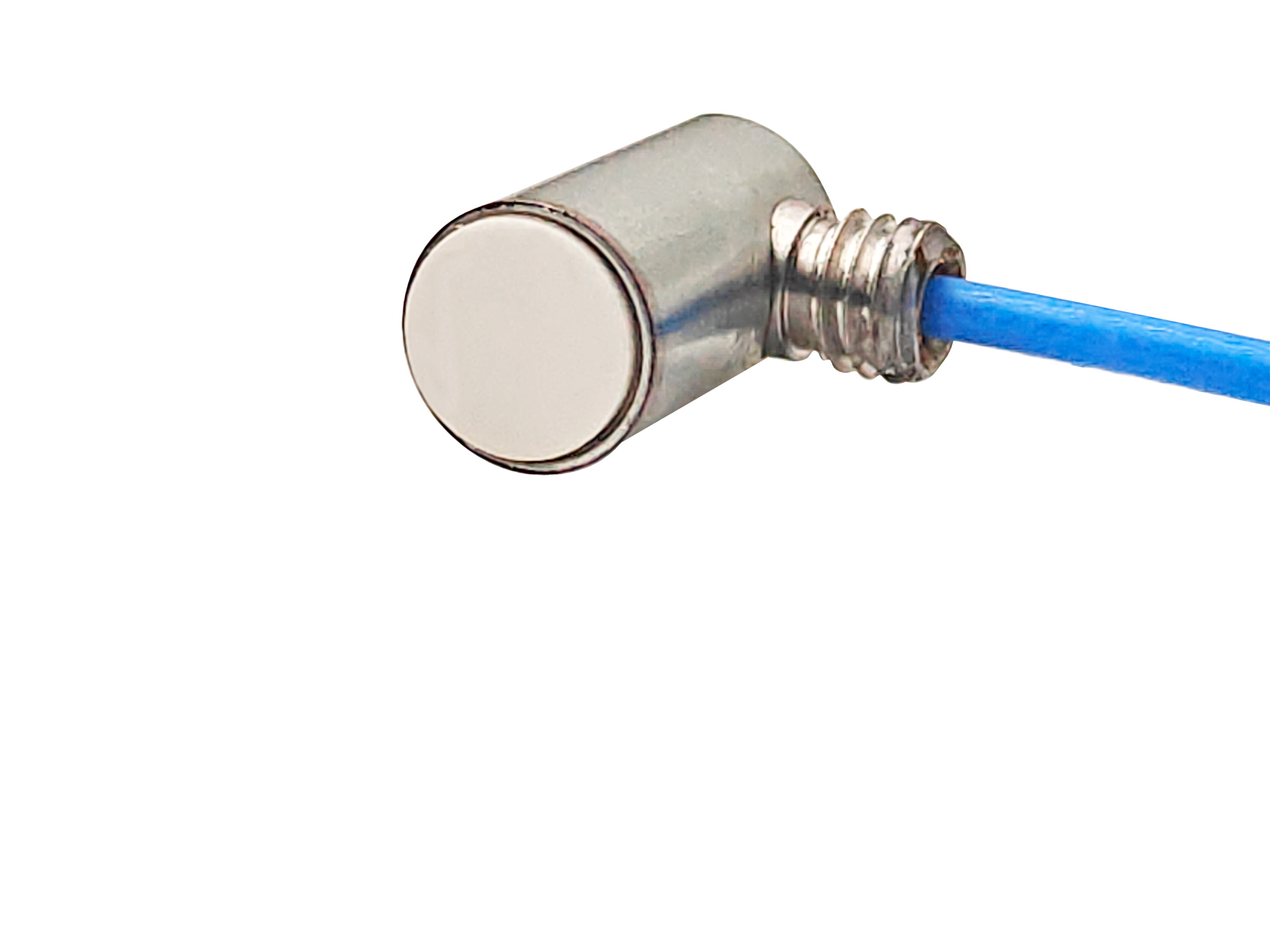

| Face Material | Ceramic |
| Protecting Grade | IP65 |

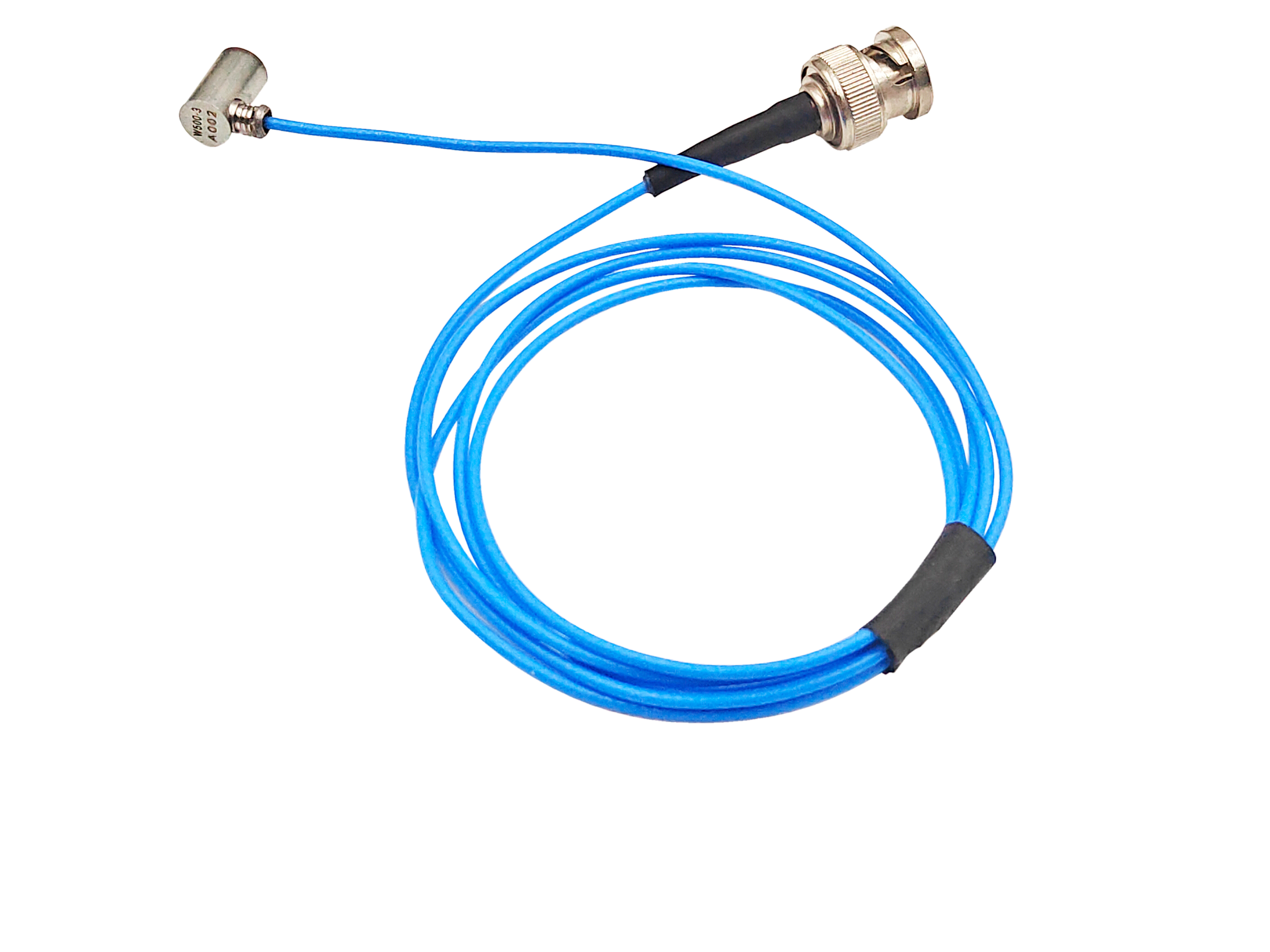

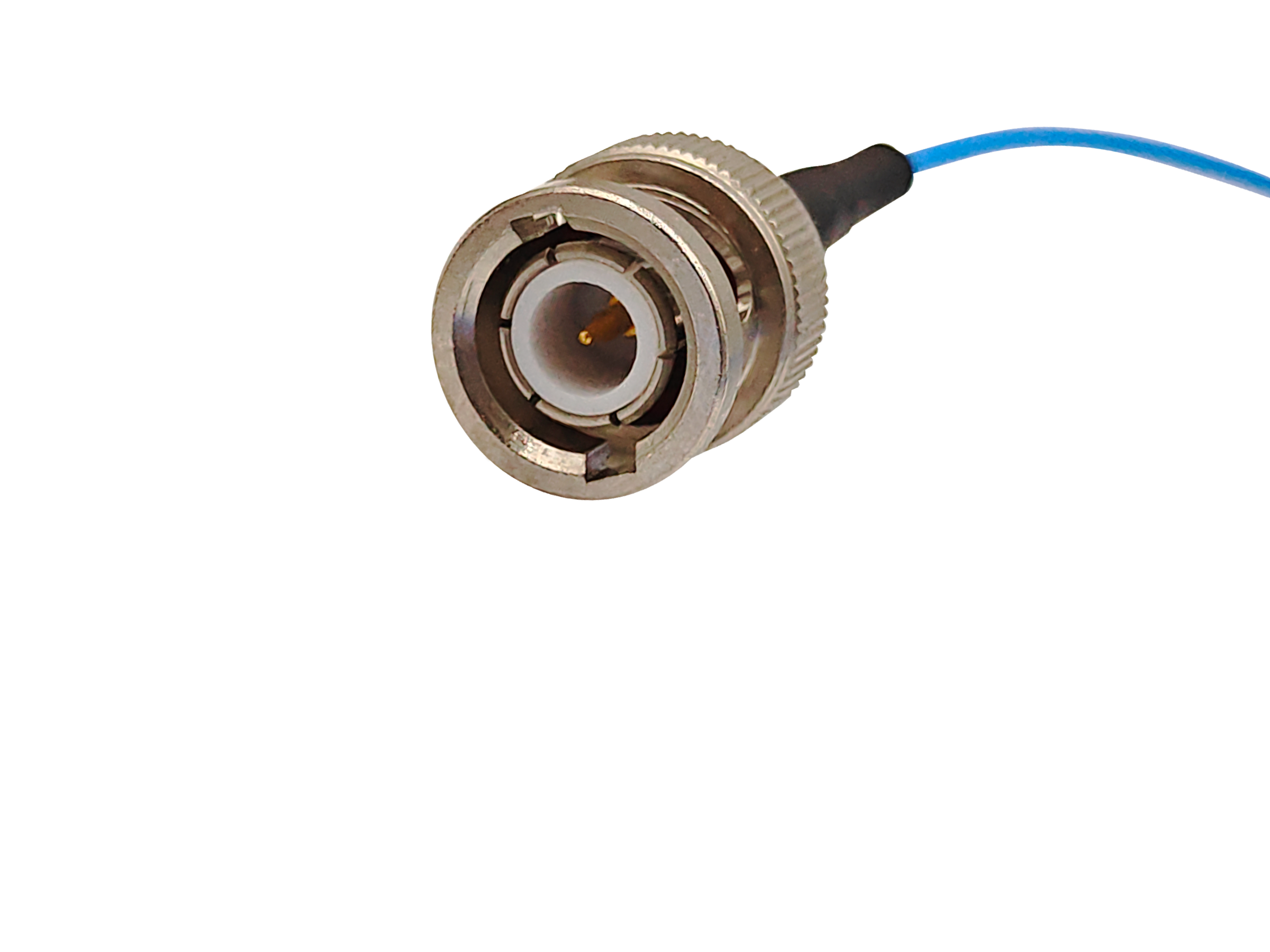

| Connector | BNC on integral cable |
| Connector Location | Side |
| Cable Length | 2m |
| Accessories | |
| Signal cable model | RG178-PFA |
| Hold-down | Saddle type |
| Preamplifier | PAS3/PAV |
Further Information
Sensor Data Sheet.pdf
