Waveform Analysis

Definition

Waveform analysis is the study of the shape and characteristics of acoustic emission (AE) signals in the time and frequency domains.

Explanation

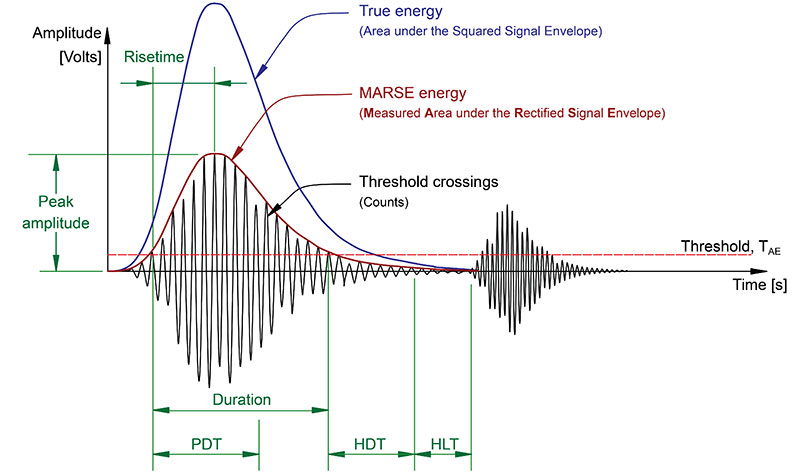

Unlike parameter-based AE analysis that uses extracted values such as amplitude or counts, waveform analysis evaluates the complete signal waveform to obtain more detailed information about damage mechanisms and wave propagation behavior.

Waveform analysis may include time-domain analysis, frequency analysis, FFT processing, and pattern recognition techniques.

Key Notes

• Uses full waveform data
• Provides more detailed signal information
• Helps identify different damage mechanisms
• Common in advanced AE research and diagnostics
• Requires higher data acquisition and storage capacity

Applications

• Crack growth analysis
• Composite material testing
• Source characterization
• Frequency-based signal classification
• AI and machine learning analysis
• Structural health monitoring (SHM)

FAQ

Q: What is the difference between waveform analysis and parameter analysis?

Parameter analysis uses extracted signal features such as amplitude or energy, while waveform analysis evaluates the complete AE signal shape.

Q: Why is waveform analysis important?

Waveform analysis can reveal detailed characteristics of AE sources and improve damage classification accuracy.

Q: Does waveform analysis require broadband sensors?

Broadband AE sensors are often preferred because they preserve more frequency information for detailed waveform analysis.

Related Terms

Signal Processing, FFT, Frequency Analysis, Feature Extraction
