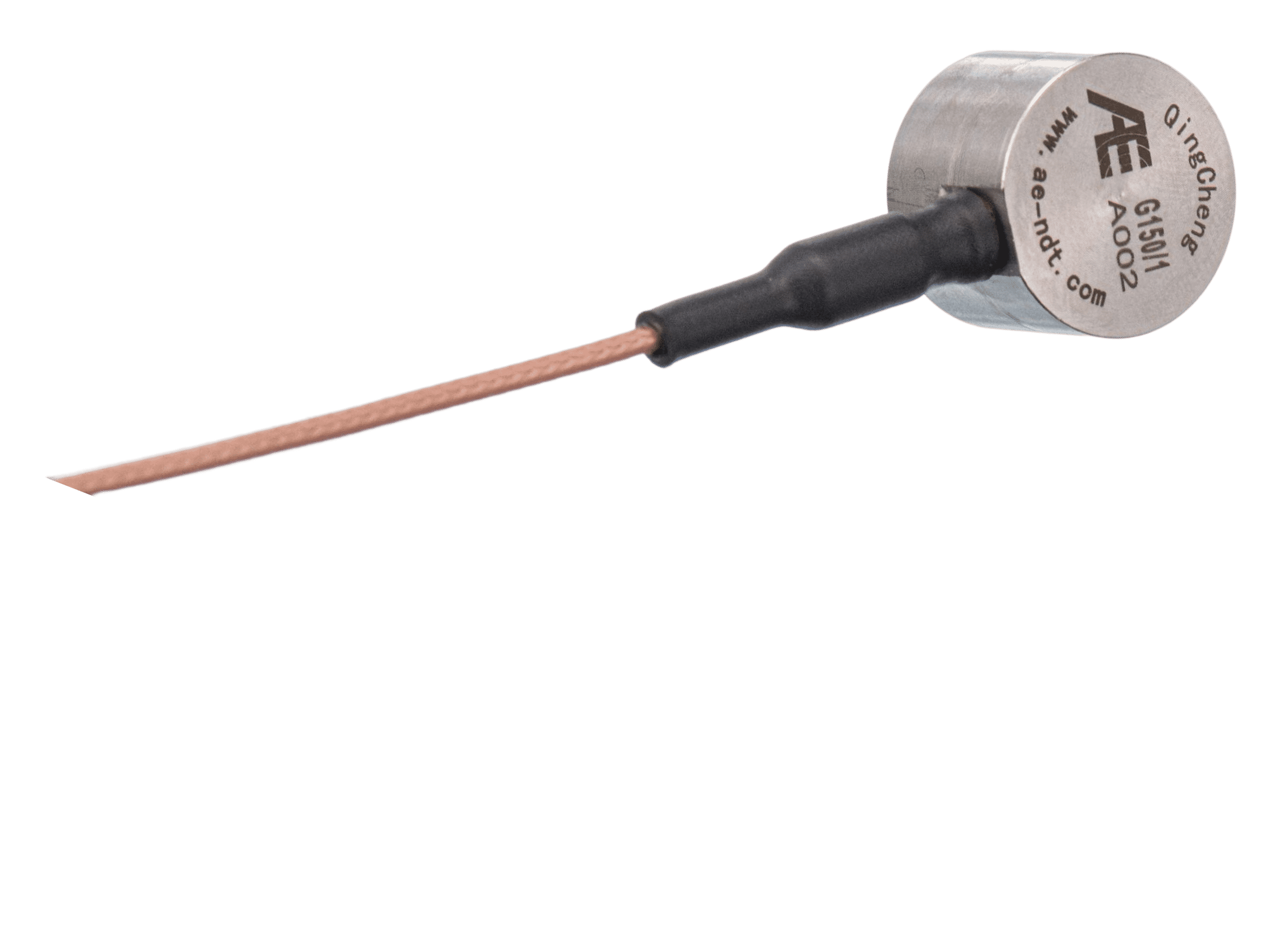

G150/1 Sensor

Model:

G150/1

Description:

The G150/1 is a passive piezoelectric AE sensor with narrowband and high sensitivity, also it is waterproof. Stainless steel material makes it reliable and endurable.

Features:

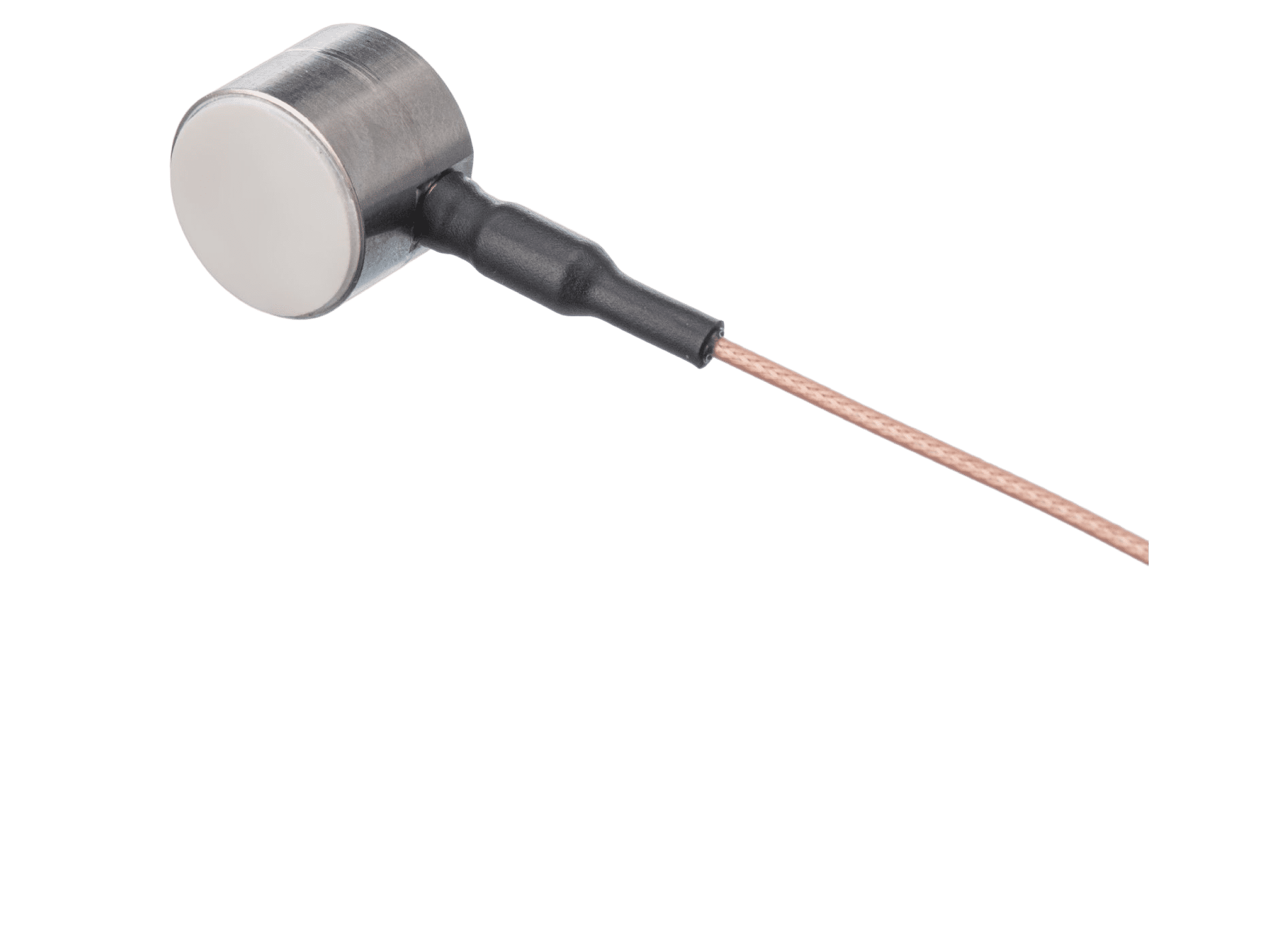

Waterproof, stainless steel case and ceramic interface, BNC connector.

ENQUIRY NOWCONTACT:+86-20-32290092

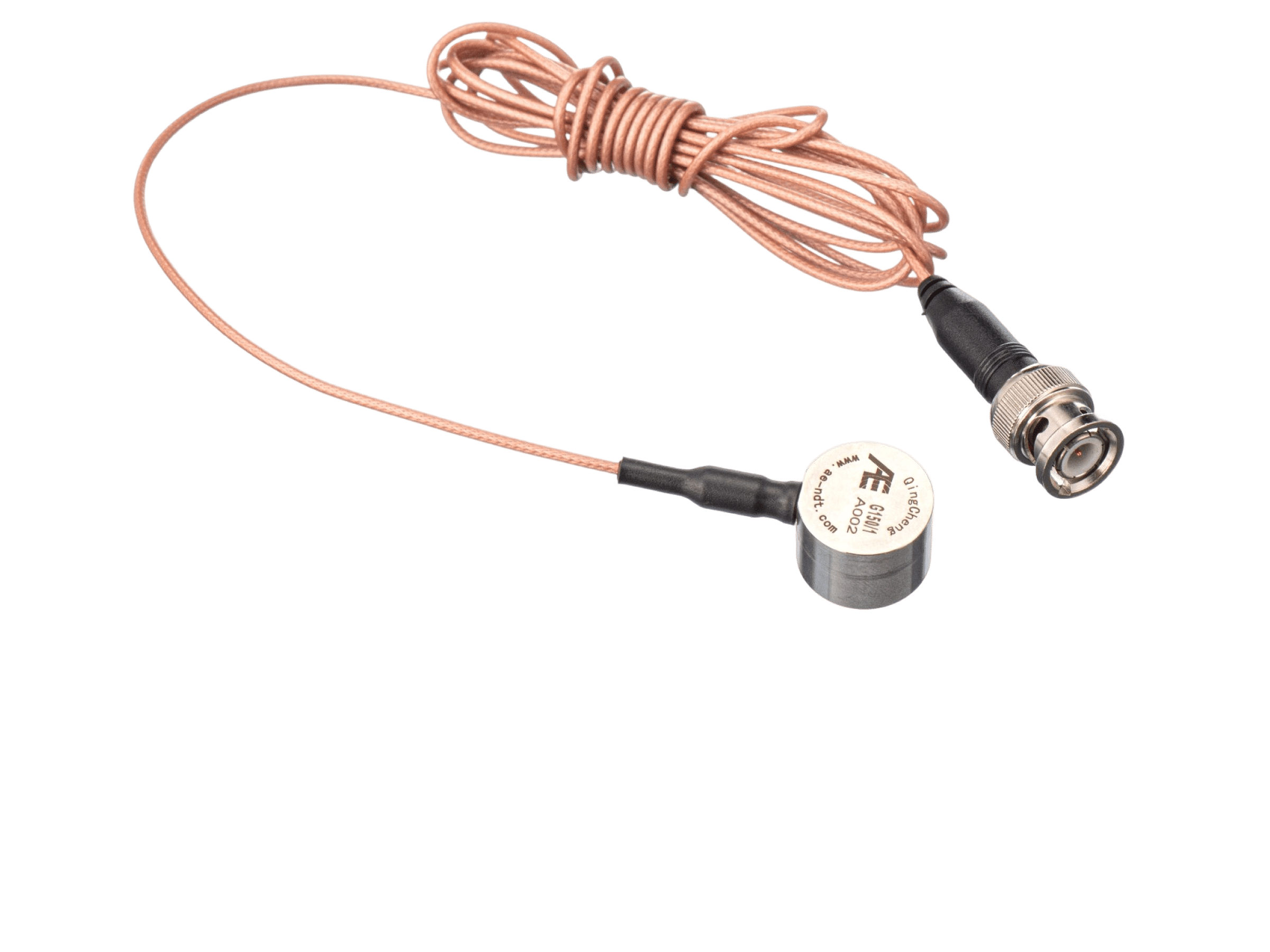

G150/1 Sensor

Applications

G150/1 is a passive piezoelectric acoustic emission sensor. This sensor is suitable for the crack or fault diagnosis of metal under water,and also for structural health monitoring of large structures like storage tanks, pipelines etc.It could be easily mounted by a magnetic hold-down.


Technical Specs

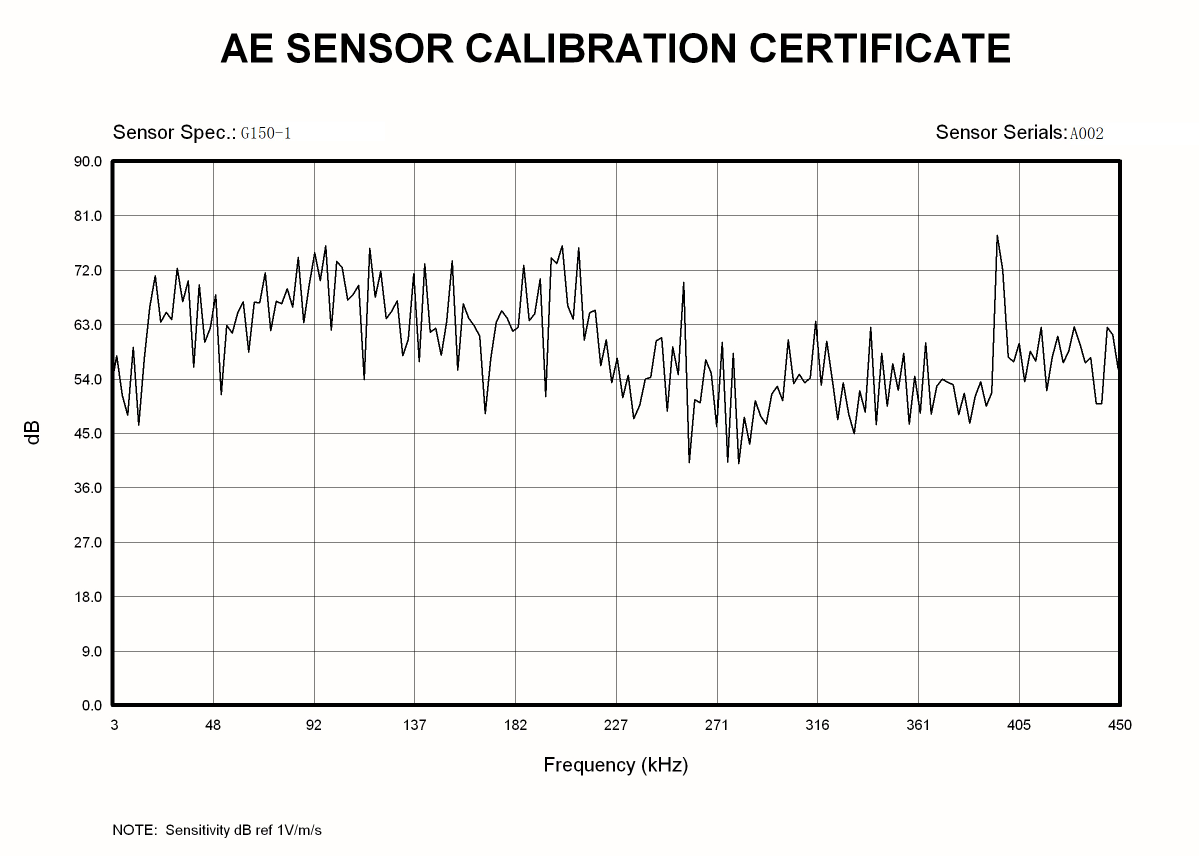

Resonant Freq.   Ref V/(m/s)150kHz
Frequency Range60kHz-400kHz
Sensitivity Peak   Ref V/(m/s)>75dB
Working Temp.-20 to 120℃
Size(DxH)19×15mm
Weight50g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP68

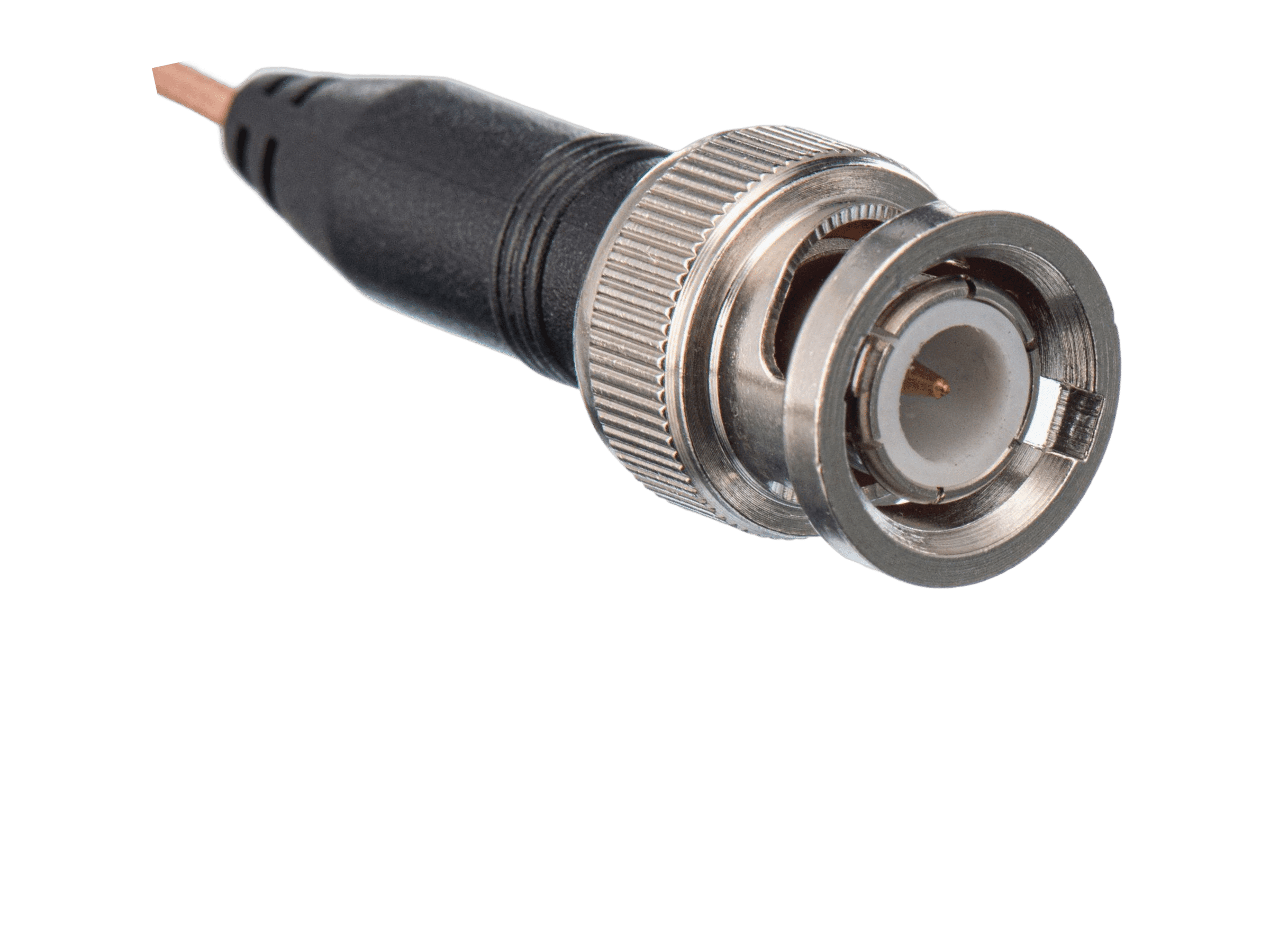

ConnectorBNC on integral cable
Connector LocationSide
Accessories
Signal cable modelSYV-50-3/STYV-50-2
Hold-downM20
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Waterproof, stainless steel case and ceramic interface, BNC connector.
