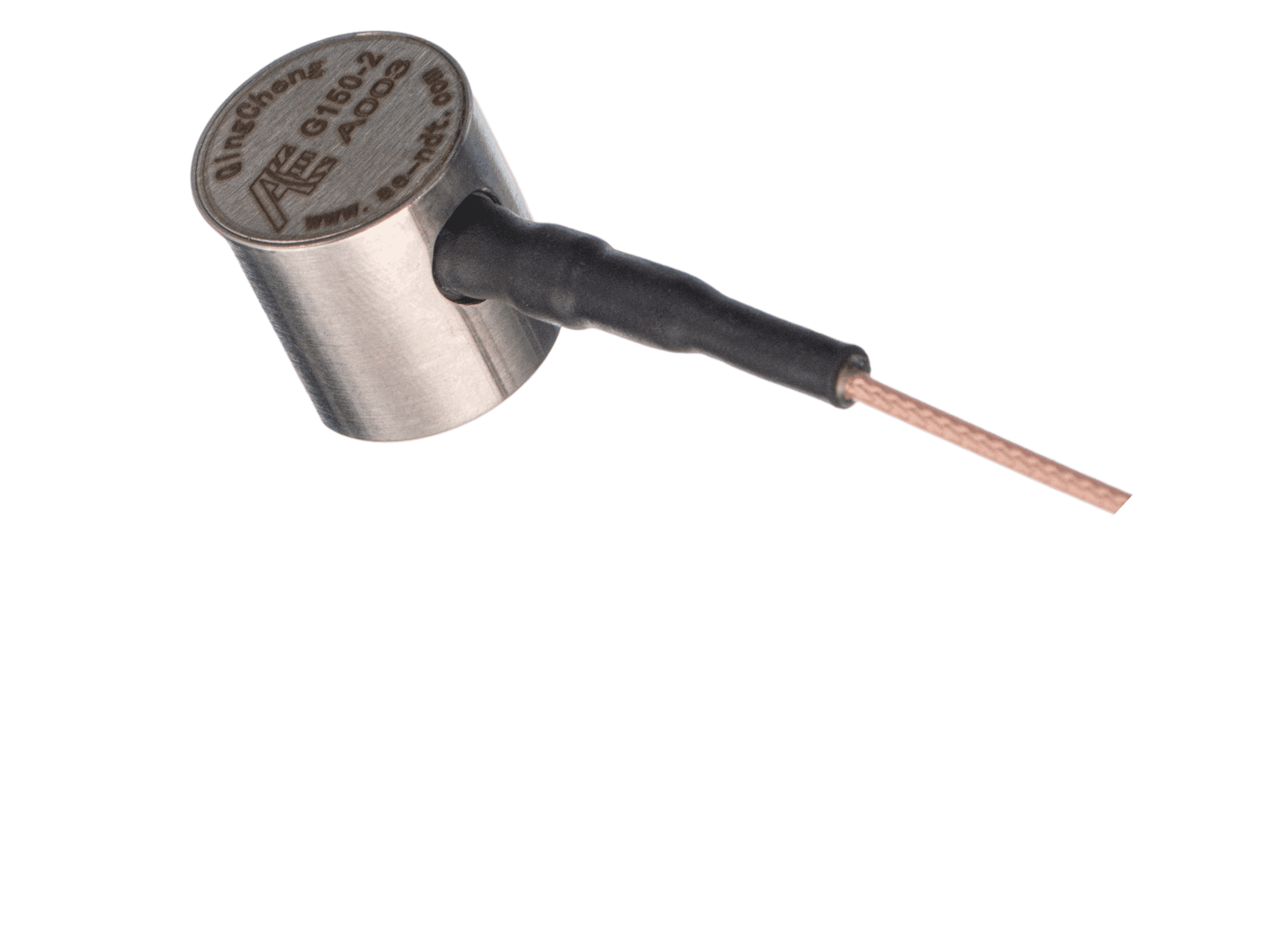

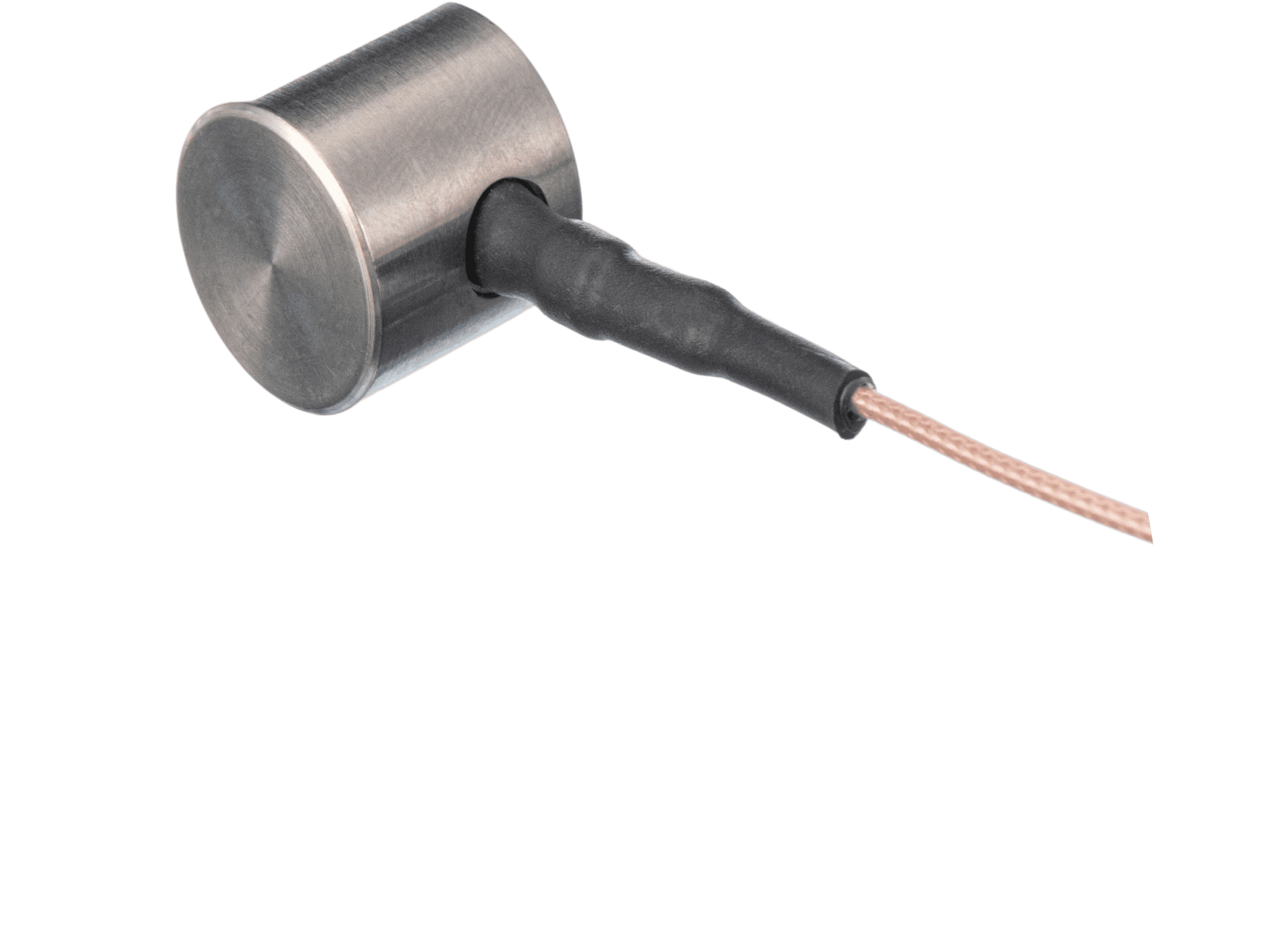

G150/2 Sensor

Model:

G150/2

Description:

G150/2 is a passive piezoelectric all-metal AE sensor with narrowband and high sensitivity, also it is waterproof. Pure metal structure makes it reliable and endurable.

Features:

Full stainless steel case, waterproof and BNC connector.

ENQUIRY NOWCONTACT:+86-20-32290092

G150/2 Sensor

Applications

G150/2 is a passive piezoelectric acoustic emission sensor. This sensor is suitable for the crack or fault diagnosis of metal under water,and also for structural health monitoring of large structures like storage tanks, pipelines etc.It could be easily mounted by a magnetic hold-down.


Technical Specs
Resonant Freq.  Ref V/(m/s)150kHz
Frequency Range60kHz-400kHz
Sensitivity Peak  Ref V/(m/s)>70dB
Working Temp.-20 to 120℃
Size(DxH)19×19.5mm
Weight55g
Case MaterialSUS-304
Face MaterialSUS-304
Protecting GradeIP68

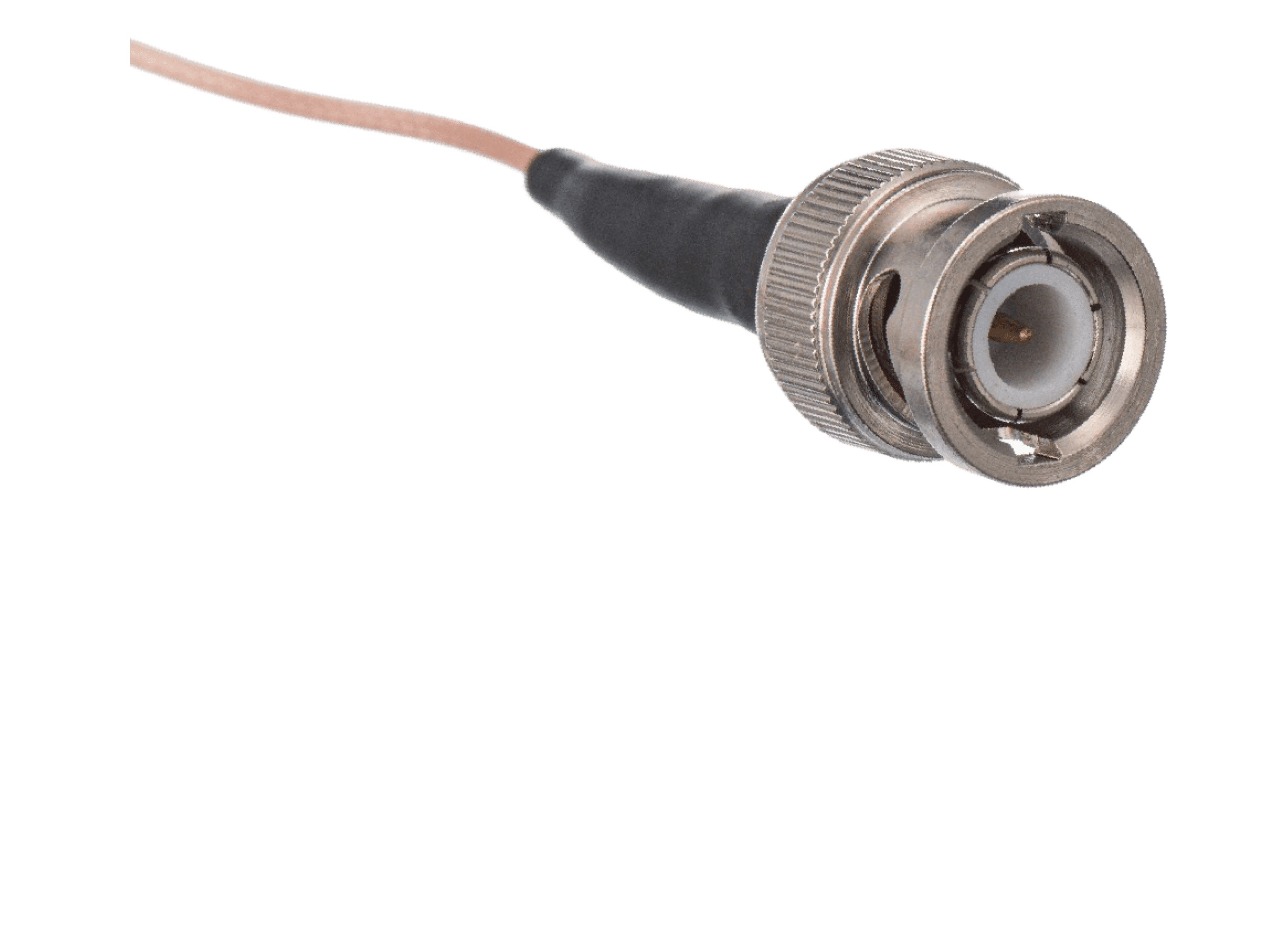

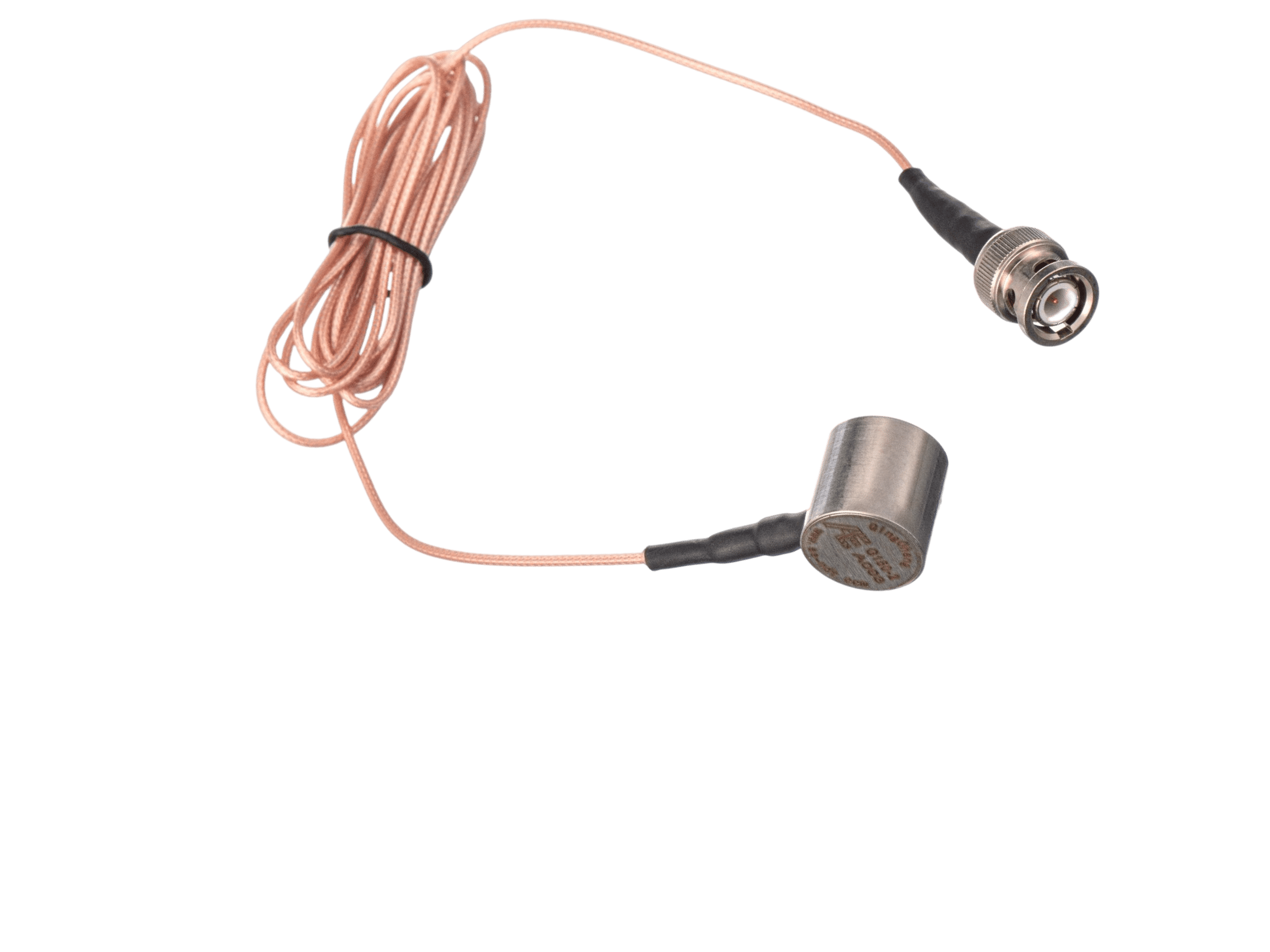

ConnectorBNC on integral cable
Connector LocationSide
Accessories
Signal cable modelSYV-50-3/STYV-50-2
Hold-downM20A
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Full stainless steel case, waterproof and BNC connector.
