AE Sensor Intrinsically Safe GSI150

Model:

GSI150

Description:

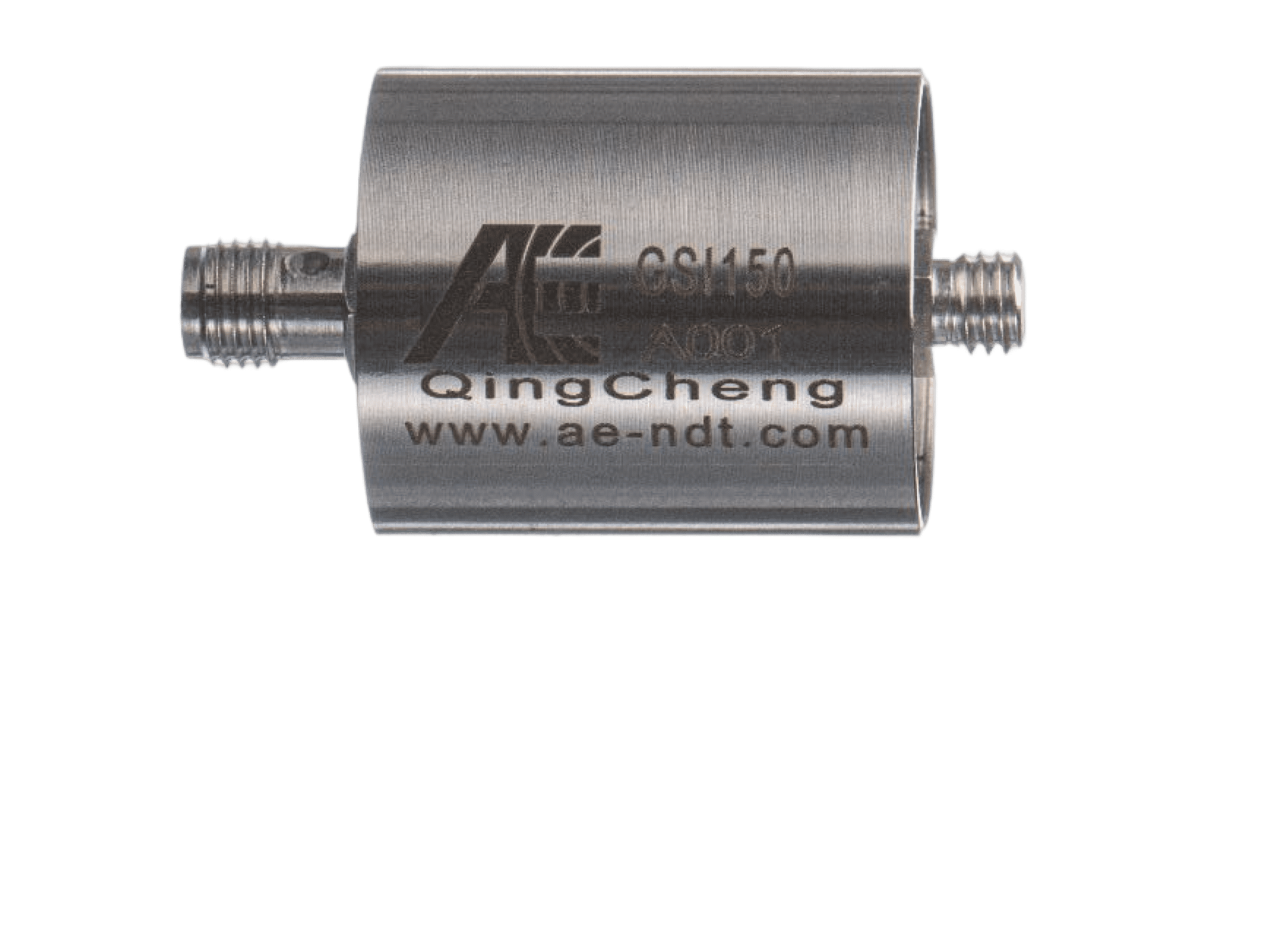

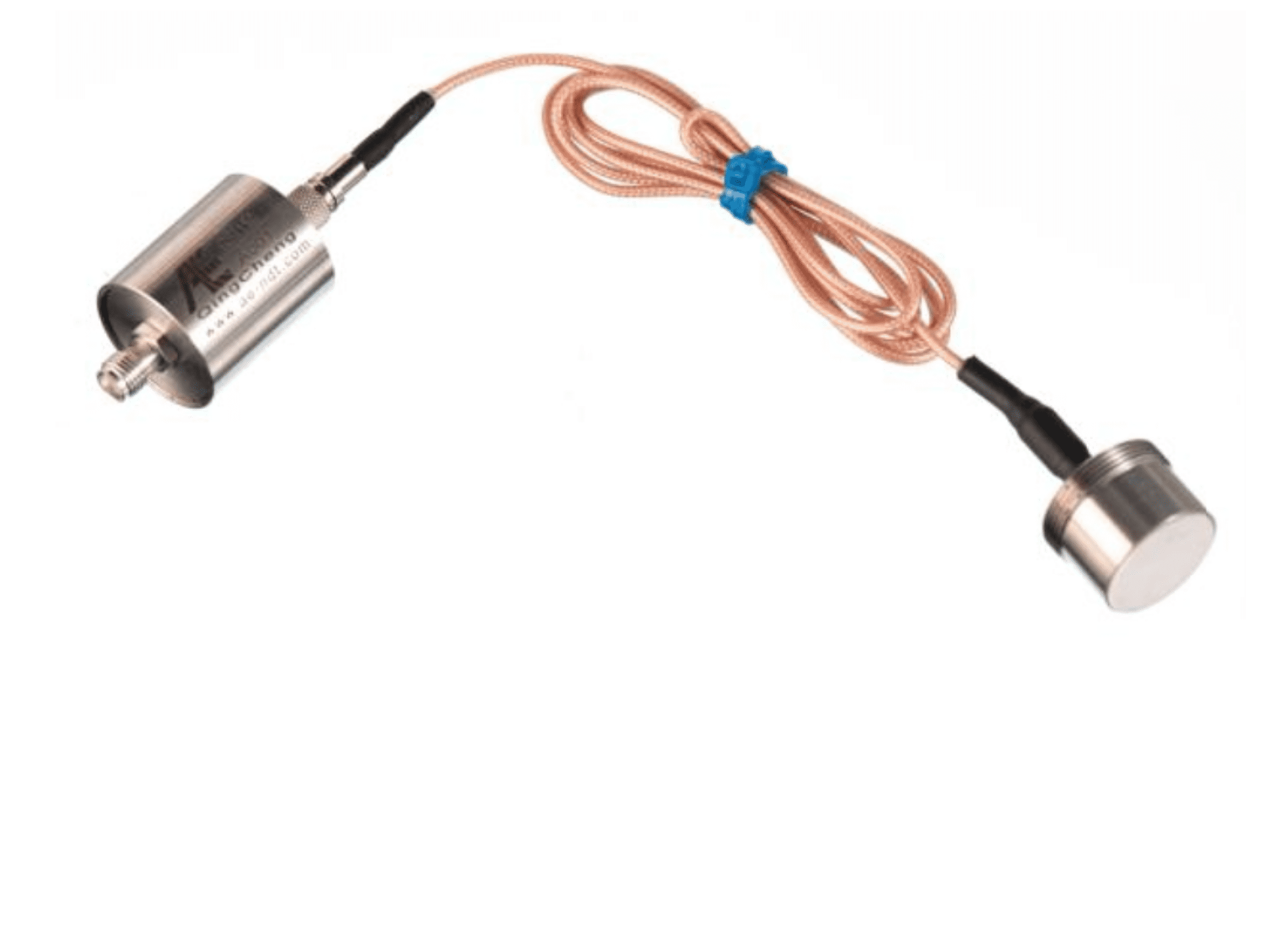

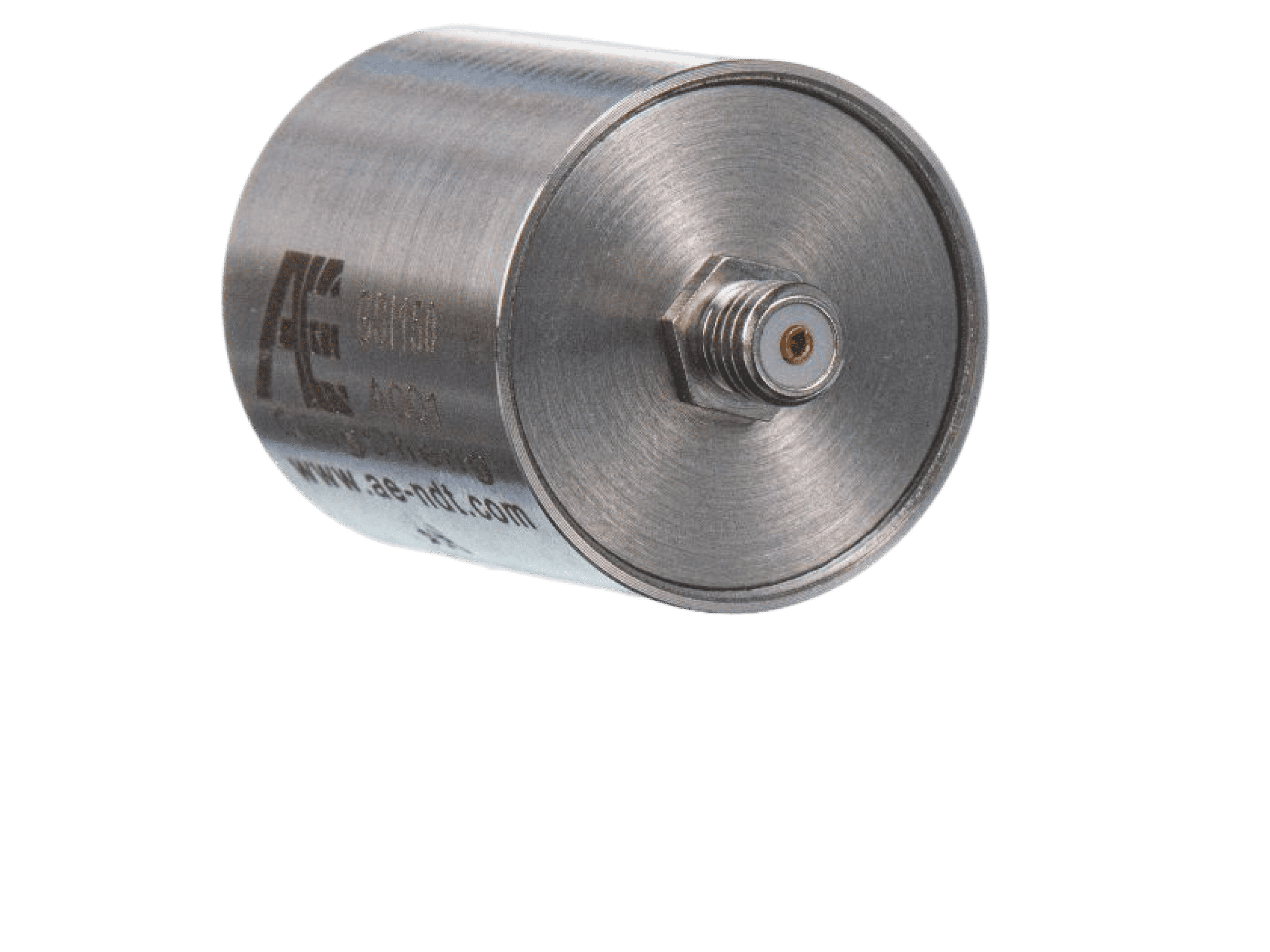

Intrinsically safe explosion-proof AE sensor, it is connected with a 26dB5V preamplifier by 1 meter RG178 cable. Stainless steel shell makes it possible to work in high temperature environment.

Features:

Intrinsically safe explosion-proof sensor with a 26dB5V preamplifier and 1 meter RG178 cable.

ENQUIRY NOWCONTACT:+86-20-32290092

Applications

The GSI150 is well suited for detecting equipment in harsh environment that requires intrinsic safety. It is useful  for detecting the crack and fault of metallic equipment and monitoring structures such as pipelines, vessels, bridges etc.



Technical Specs

Resonant Freq.   Ref V/(m/s)

150kHz

Frequency Range

60kHz-400kHz

Sensitivity Peak   Ref V/(m/s)

>73dB

Integral preamplifier

26dB5V

Preamp. Impedance

50Ω

Working Temp.

Sensor:-20 to 170℃

Preamp:-20 to 60

SizeDxH

Sensor:Φ19x14 mm

Preamp:Φ21.7x25 mm

Weight

26 g

Case Material

SUS-304

Face Material

Ceramic

Protecting Grade

IP68

Connector

SMA

Connector Location

Top on preamplifier

Accessories

Signal cable model

RG178/RG316






Further Information




Intrinsically safe explosion-proof sensor with a 26dB5V preamplifier and 1 meter RG178 cable.
