AE Sensor Intrinsically Safe GSI150
Model：
GSI150
Description：
Intrinsically safe explosion-proof AE sensor, it is connected with a 26dB5V preamplifier by 1 meter RG178 cable. Stainless steel shell makes it possible to work in high temperature environment.
Features：
Intrinsically safe explosion-proof sensor with a 26dB5V preamplifier and 1 meter RG178 cable.
Applications
The GSI150 is well suited for detecting equipment in harsh environment that requires intrinsic safety. It is useful for detecting the crack and fault of metallic equipment and monitoring structures such as pipelines, vessels, bridges etc.
| Technical Specs | |

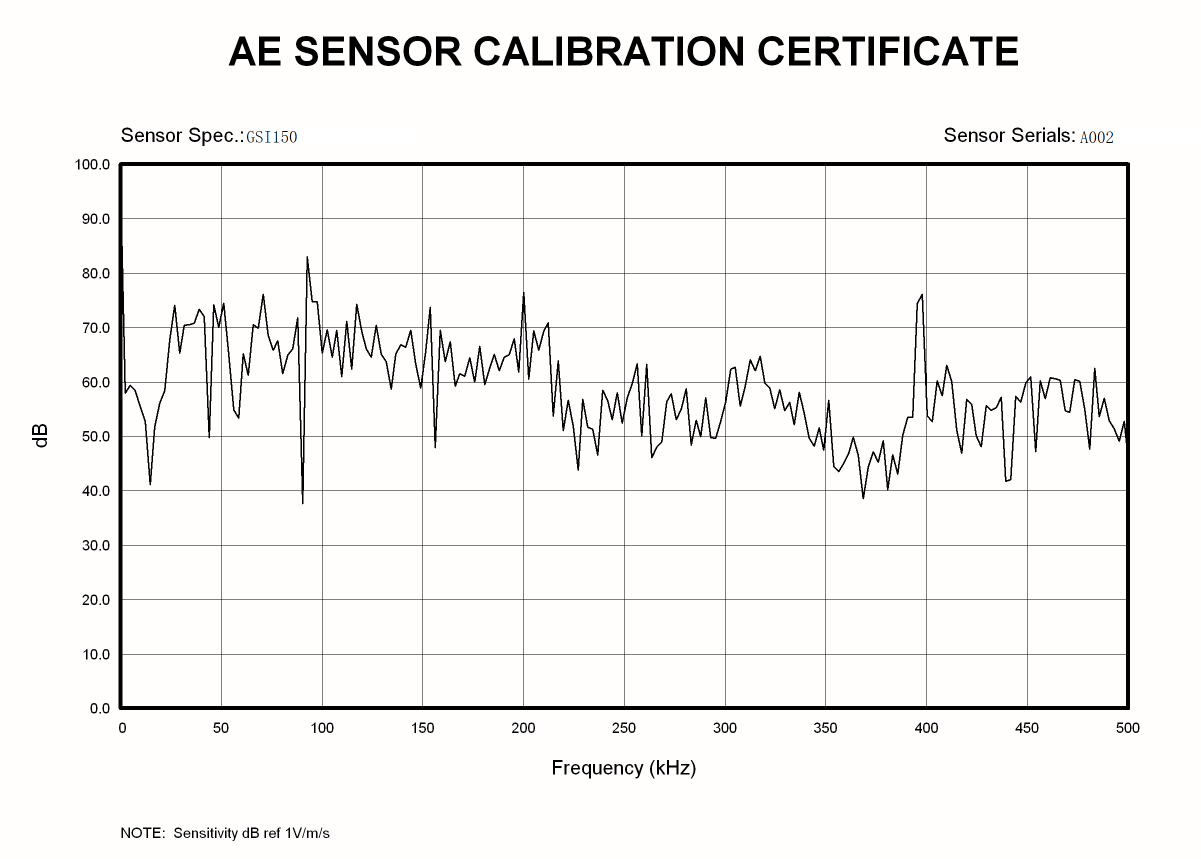

| Resonant Freq. Ref V/(m/s) | 150kHz |
| Frequency Range | 60kHz-400kHz |
| Sensitivity Peak Ref V/(m/s) | >69dB |
| Integral preamplifier | 26dB5V |
| Preamp. Impedance | 50Ω |
| Working Temp. |
Sensor:-20 to 170℃ Preamp:-20 to 60℃ |
| Size（DxWxH） |
Sensor:Φ19x14 mm Preamp:Φ21.7x25 mm |
| Weight | 26g |
| Case Material | Stainless steel/copper/aluminum |
| Face Material | Ceramic |
| Protecting Grade | IP68 |
| Connector | SMA |
| Connector Location | Top on preamplifier |
| Accessories | |
| Signal cable model | RG178/RG316 |
Further Information
Intrinsically safe explosion-proof sensor with a 26dB5V preamplifier and 1 meter RG178 cable.
