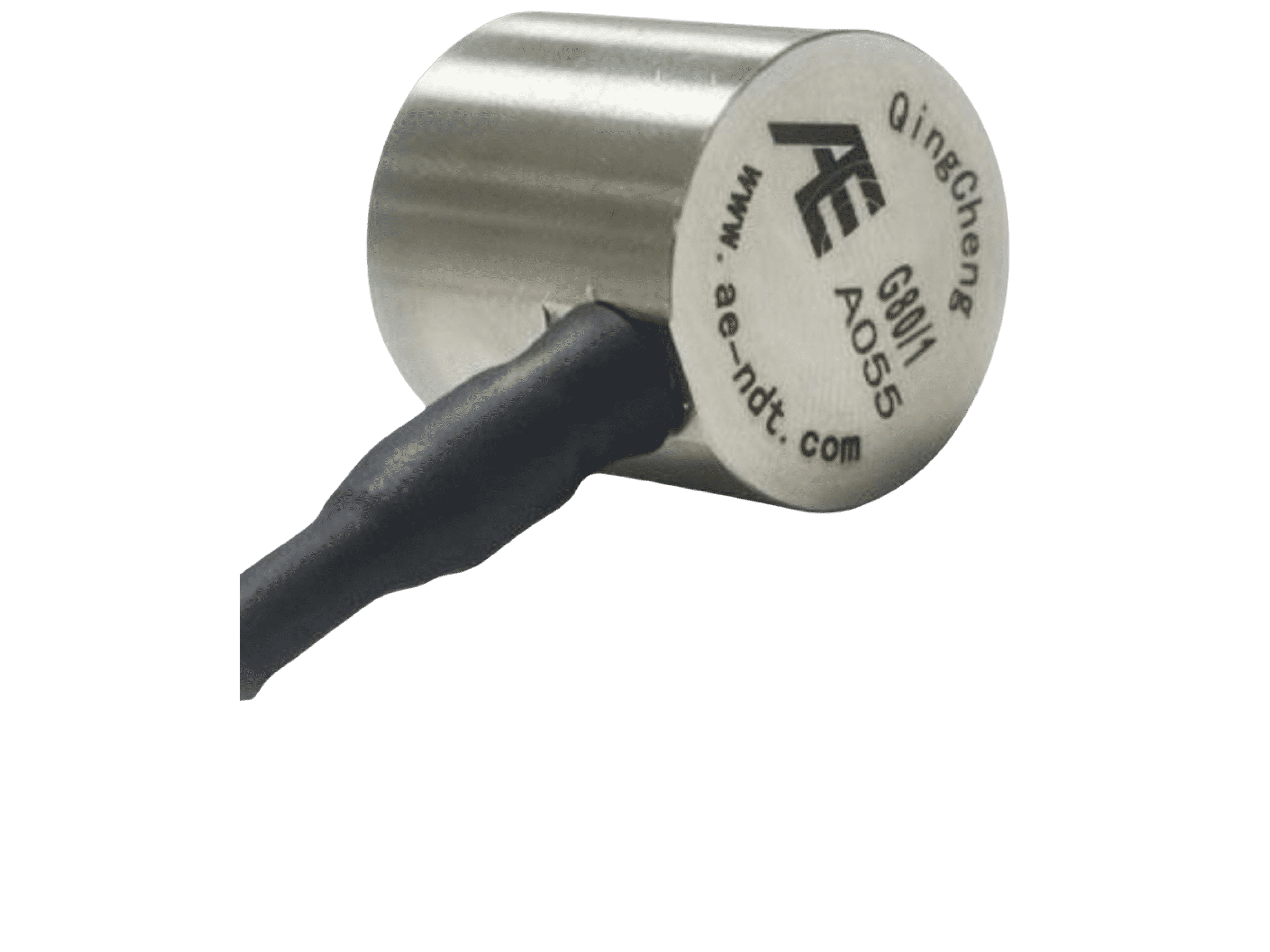

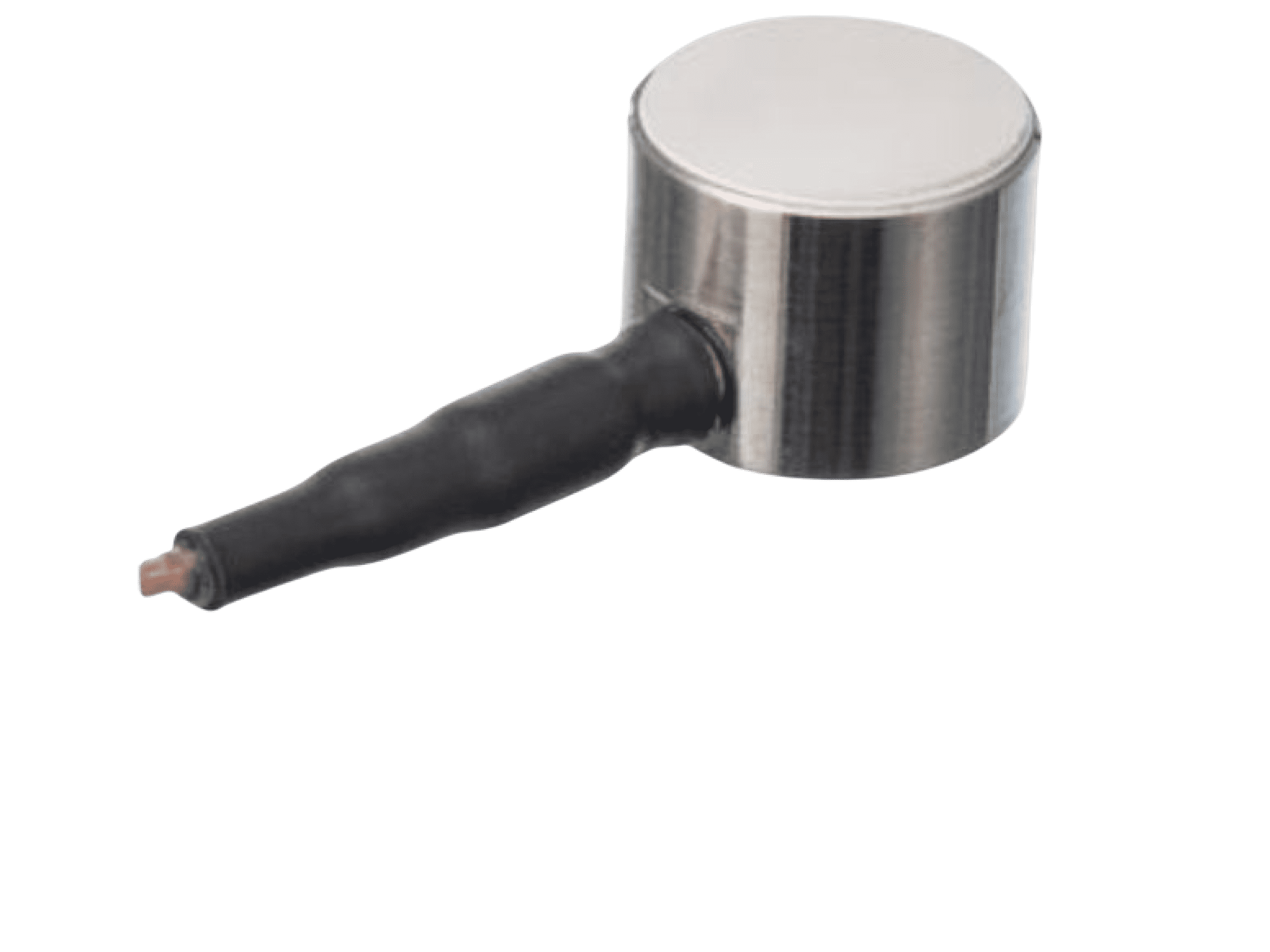

G80/1 Sensor

Model:

G80/1

Description:

The G80/1 is a passive piezoelectric AE sensor with narrowband. High protecting grade makes it possible to work in the water or uderground.

Features:

Waterproof, stainless steel case and ceramic interface, BNC connector. Rugged design, stable performance, good compatibility.

ENQUIRY NOWCONTACT:+86-20-32290092

G80/1 Sensor

Applications

G80/1 is a passive piezoelectric acoustic emission sensor. The low frequency response makes it suitable for monitoring large objects or objects made of highly attenuating material, such as concrete steel and geologic structures. It also could be used for monitoring leakage of pressure vessels and for detecting partial discharge.


Technical Specs
Resonant Freq.  Ref V/(m/s)80kHz
Frequency Range20kHz-180kHz
Sensitivity Peak   Ref V/(m/s)>70dB
Working Temp.-20 to 80℃
Size(DxH)19×19.5mm
Weight59g
Case MaterialSUS-304
Face MaterialCeramic
Protecting GradeIP68

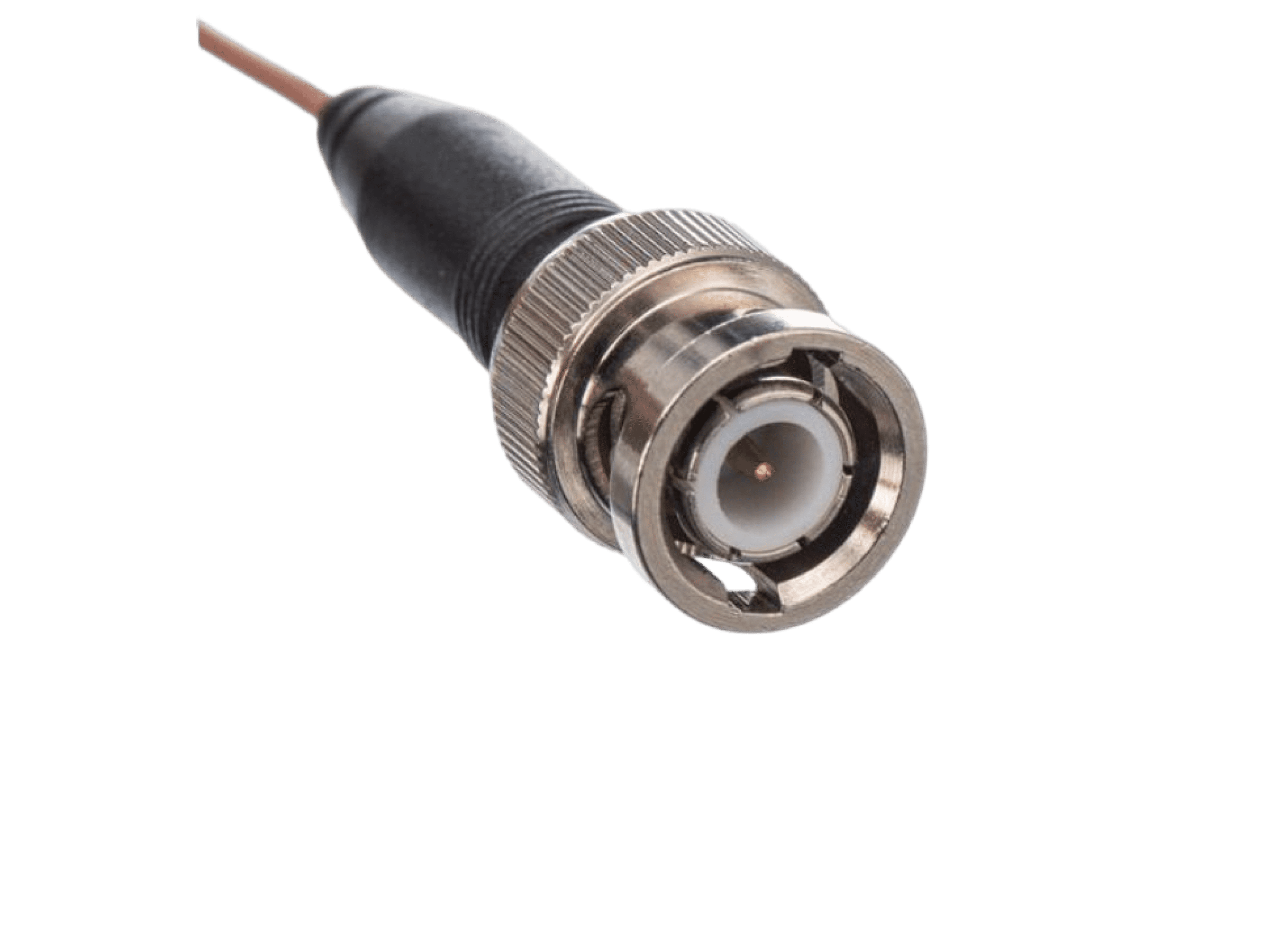

ConnectorBNC on integral cable
Connector LocationSide
Accessories
Signal cable modelSYV-50-3/STYV-50-2
Hold-downM20A
PreamplifierPAS/PAV

Further Information

Sensor Data Sheet.pdf


Waterproof, stainless steel case and ceramic interface, BNC connector. Rugged design, stable performance, good compatibility.
