ACOUSTIC EMISSION SENSORS
What are acoustic emission sensors and how do they work?
Acoustic wave (acoustic emission) sensors are the ceramic piezoelectric transducers converting the mechanical elastic acoustic waves generated in the material (e.g. elastic waves occur when a material cracks, wears, deforms, or corrodes) to electrical signals. The electrical signals are then amplified and filtered by a preamplifier and then transmitted to a special acoustic emission acquisition instrument for further data processing and analysis.
We develop and manufacture various types of acoustic emission sensors for sale, including general purpose type, wide-band type, integral preamplifier type, intrinsically safe type, high temperature type, miniature type, as well as customized acoustic emission sensors tailored to meet the special needs of our customers and a wide range of applications.
Please see categories of acoustic emission sensors below for further information.
-

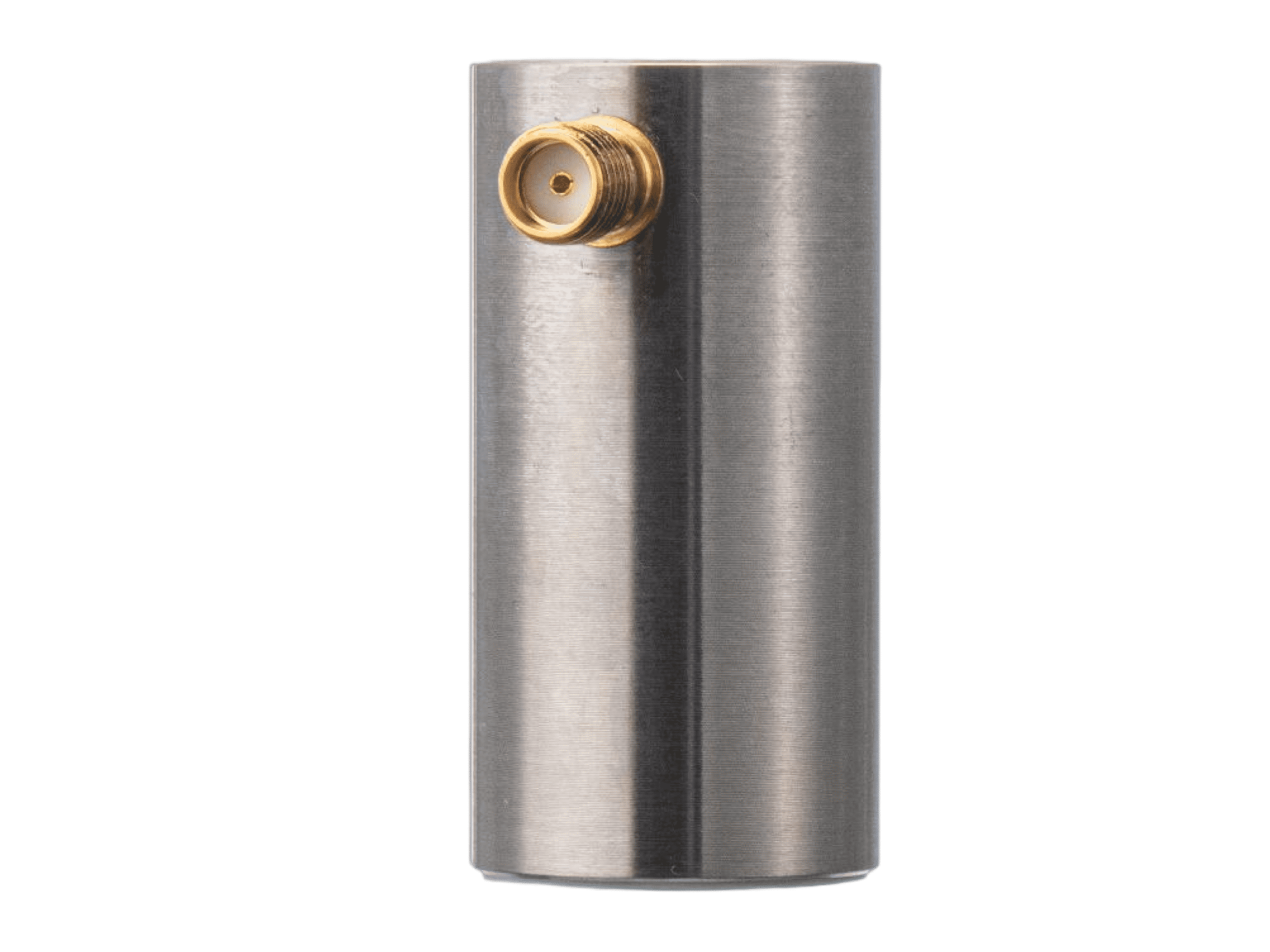

GI35/2 Sensor
Passive piezoelectric AE sensor with built-in 34dB 12V preamplifier. And 15kHz-70kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.
More Information -
GI35/1 Sensor
Passive piezoelectric AE sensor with built-in 26dB 5V preamplifier. And 15kHz-70kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.
More Information -

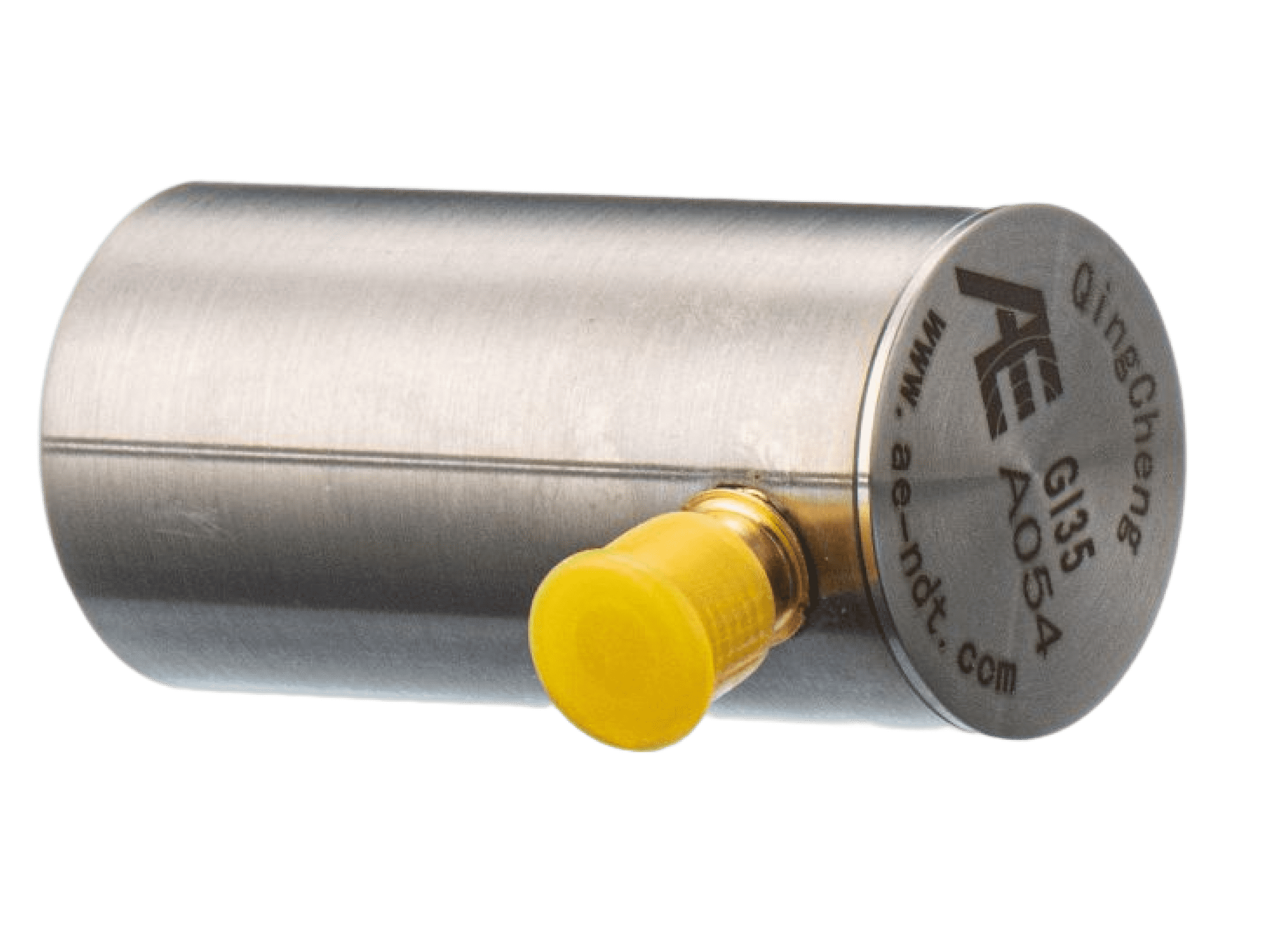

GI35 Sensor
GI35 is a passive piezoelectric AE sensor with built-in 40dB28V preamplifier. And 15kHz-70kHz bandwidth makes it suitable for detecting low frequency acoustic emission signals.
More Information -

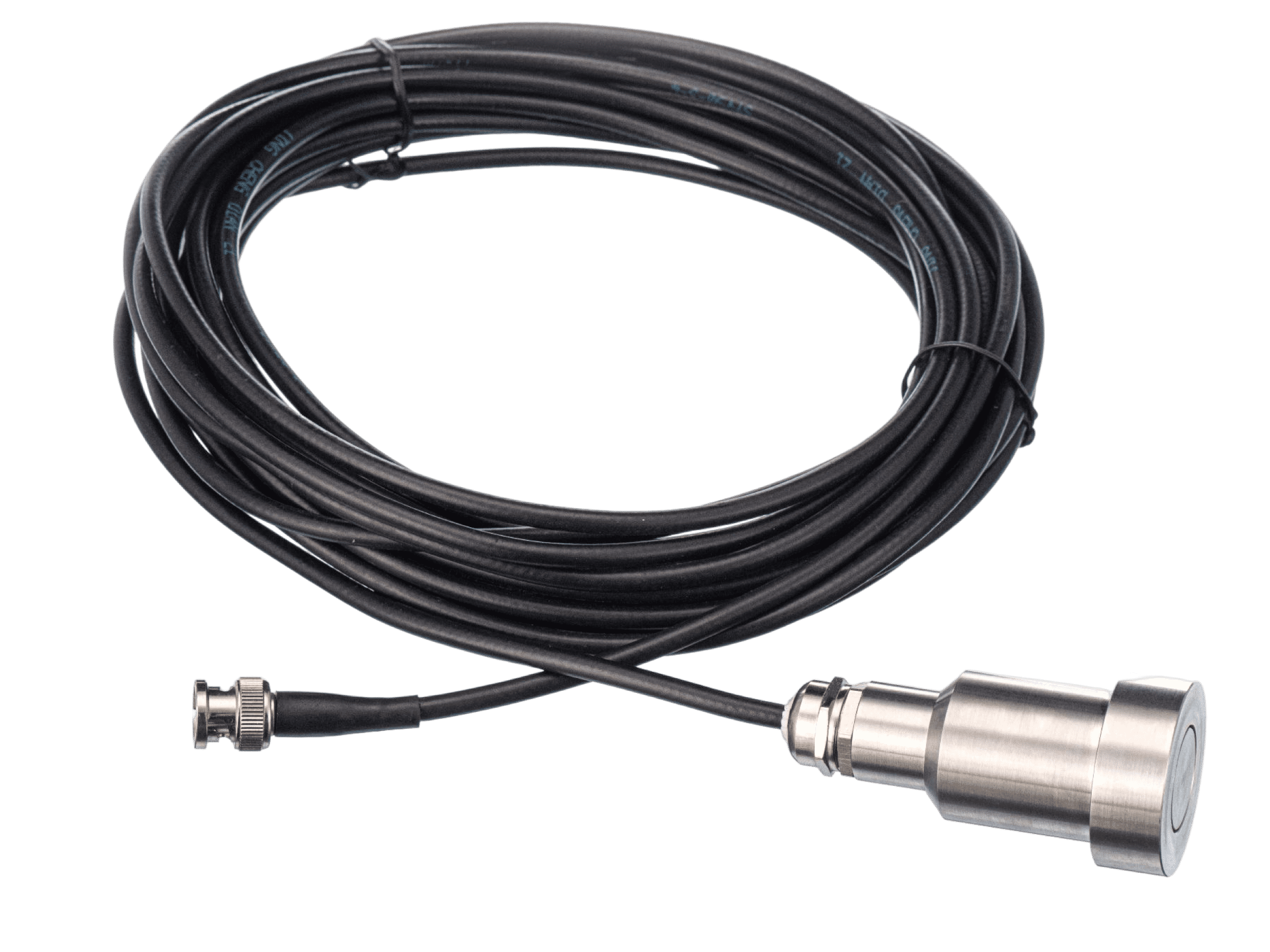

GI10/1 Sensor
GI10/1 is a passive piezoelectric AE sensor with preamplifier built-in and very low frequency response,all-metal shell features makes it reliable and could be buried in the ground for long-term monitoring.
More Information -
GH150/2 High Temperature AE Sensor
GH150/2 is a medium high temperature acoustic emission sensor with 1.5 meters high temperature resistant cable, could be used in high temperature environment ( up to 170 ℃ ).
More Information -
GH150 High Temperature AE Sensor
GH150 is an Ultra high temperature AE sensor with 1-1.2 meters high temperature resistant metallic tube and 2 meters cable, shell and contact surface are stainless invar steel, could be installed in ultra high temperature area.
More Information -
GH150/1 High Temperature AE Sensor
Ultra high temperature AE sensor with 0.5 meters high temperature resistant metallic tube and 2 meters cable, shell and contact surface are stainless invar steel, could be installed in ultra high temperature area.
More Information -
GIS35 Intrinsically Safe Acoustic Emission Sensor
Intrinsically safe explosion-proof sensor. The GIS35 is well suited for detecting leakege and corrosion in harsh environment that requires intrinsic safety and for structures health monitoring such as pipelines, vessels, bridges etc.
More Information
